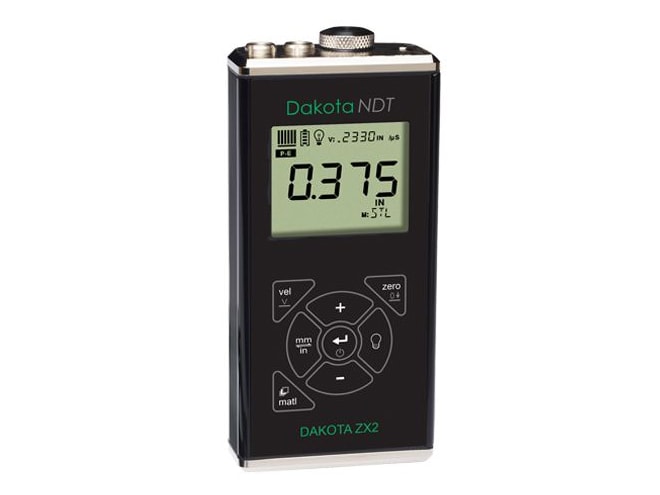

Dakota NDT ZX2 Fixed Velocity Thickness Gauge
Velocity adjustable on keypad and selectable from 8 common materials and 2 programmable presets.
Overview
Features
- Pulse-Echo (P-E) measurement range: 0.025 to 36in (0.63 to 914.4mm)
- Measurement resolution: 0.001in (0.01mm)
- 120MHz FPGA timing
- 150 volt square wave pulser
- Velocity range: 0.0120 to 0.7300in/μs (305 to 18,542m/s)
- Pulse repetition frequency: 200Hz
- Display update rate: 10Hz
- 8 preset and 2 user-programmable velocity options
- Dual-element transducer (1-10MHz)
- Automatic V-path / dual path error correction
- Adjustable material velocity
- Multi-function, 7-segment, 4.5-digit liquid crystal display
- Factory calibration traceable to NIST & MIL-STD-45662A
- 5-year limited warranty
What's in the Box
- Selectable transducer
- Couplant
- Manual
- Plastic carrying case
- Certificate of Calibration
- AA batteries
Description
The Dakota NDT ZX2 fixed velocity thickness gauge is a basic dual element thickness gauge with the ability to locate blind surface pitting and internal defects/flaws in materials. The ZX2 is capable of measuring the thickness of various materials with accuracy as high as ±0.001 inches (±0.01 millimeters).
The ZX2 gives inspectors more pre-set calibration options by allowing them to scroll to a known material velocity, or select a common material from a list of material types stored within the gauge.
Dakota NDT ZX2 Fixed Velocity Thickness Gauge's selectable velocity options
- Steel 4340 0.233in/μs (5918m/s)
- Stainless 303 0.223in/μs (5664m/s)
- Aluminum 2024 0.25in/μs (6350m/s)
- Cast Iron 0.18in/μs (4572m/s)
- Plexiglass 0.106in/μs (2692m/s)
- PVC 0.094in/μs (2388m/s)
- Polystyrene 0.092in/μs (2337m/s)
- Polyurethane 0.07in/μs (1778m/s)
- User programmable
- User programmable
The ZX2 gauge was designed and built to withstand the roughest industry conditions, and is backed by a 5-year limited warranty. Custom transducers are available for special applications.
Dakota NDT ZX2 Fixed Velocity Thickness Gauge Applications
- Corrosion and pitting
- Tube and pipe
- Tanks
- Boilers
- Glass
