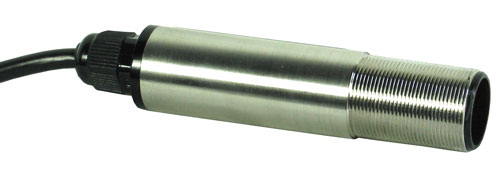

Sixth Sense ZF210C Infrared Sensor

The most cost effective 2-wire 4-20mA stationary infrared thermometer.

Retired products cannot be ordered

View Company Reviews
Part Number
  • ZF210C
Manufactured
Includes

Features

  • Spectral range: 8 to 14 µm
  • Distance to spot ratio: 12:1
  • Output temperature range: 0 to 400°C ( 32 to 752°F)
  • Analog output: 4 to 20 mA
  • Emissivity: Fixed 0.95
  • Response time: 300 ms
  • Accuracy: 2.0% of reading
Looking for a fever screening solution? Here's a list of approved items.

The Sixth Sense ZF210C infrared sensor is a compact, small and robust sensor providing non-contact temperature measurement of non-metallic objects from 0 to 400°C (32 to 752°F). Installation and connection of Sixth Sense IR sensors is simple thanks to the 2-wire design. The ZF210C infrared sensor has spectral range of 8 - 14 µm, distance to spot ratio of 12:1, a 4-20mA linear current output, 0.95 fixed emissivity and 300ms response time. The stainless steel tube housing gives the sensor an IP 65 (splash-proof) enclosure rating.

Typical applications of the Sixth Sense ZF210C stationary infrared sensor include:

  • Plastics
  • Rubber
  • Paper
  • Ceramics
  • Textiles
  • Fluids
  • Painted parts
  • Asphalt
  • Wood
  • Food
