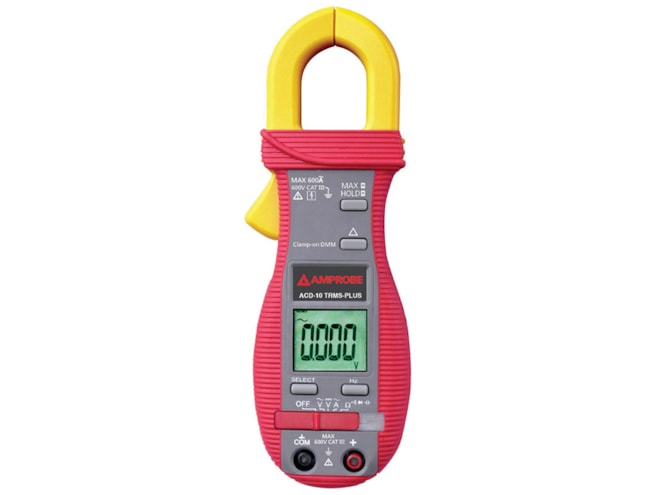

Amprobe ACD-10 TRMS-PLUS Clamp Multimeter

600 A clamp meter with True RMS features thin jaws for tight measurement areas.

Retired products cannot be ordered

The ACD-14 TRMS-PLUS Clamp Multimeter is the recommended replacement.

View Company Reviews

Part Number

ACD-10 TRMS-PLUS

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

TRMS measurement
AC & DC voltage to 600 V
AC current to 600 A
Thin jaws only 10 mm (0.4") thick
Resistance to 40 MΩ
3-3/4 digit 4000 count LCD display

The Amprobe ACD-10 TRMS-PLUS is a 600 A clamp-on multimeter. This Amprobe multimeter offers thinner jaws over standard clamp meters, which allows access to tight measurement areas while still accommodating conductors up to 25 mm. The ACD-10 TRMS-PLUS multimeter from Amprobe provides a full range of measurements and is a very versatile clamp-style multimeter. For accurate readings in noisy environments, the Amprobe ACD-10 TRMS-PLUS clamp multimeter offers true RMS functionality.

The Amprobe ACD-10 TRMS-PLUS accurately measures AC/DC voltage to 600 V, AC current to 600 A, resistance to 40 MΩ, capacitance to 3000 µF, and frequency to 600 Hz. Frequency is measured by either jaws or test leads. Measurement values are shown on the 3-3/4 digit LCD display. This autoranging Amprobe multimeter also includes a continuity buzzer, hold and maximum reading functions, and an auto power off function. The body of the Amprobe ACD-10 TRMS-PLUS has a rubber over-molded case.

The Amprobe ACD-10 TRMS-PLUS clamp multimeter ships complete with:

Test leads
Battery
Carrying pouch
Manual

Amprobe ACD-10 TRMS-PLUS Clamp Meter Specifications

Feature	Range	Accuracy
DC Voltage
	400.0 mV 4.000, 40.00, 400.0 V 600 V	±(.03% +4 dgt) ±(0.5% + 3 dgt) ±(1.0% + 4 dgt)
	NMRR: CMRR:	>50 dB@DC, 50/60 Hz >120 dB@DC, 50/60 Hz, Rs=1 kHz
	Input Impedance:	10 MΩ, 30 pF nominal(1000 MΩfor 400.0 mV range)
	Transient protection:	6.5 kV (1.2/50 µs surge)
AC Voltage (50 Hz ~ 500 Hz)
	4.000, 40.00, 400.0 V 600 V	±(1.5% + 5 dgt) ±(2.0% + 5 dgt)
	CMRR:	>60 dB @ DC to 60 Hz, Rs=1 kΩ
	Maximum crest factor:	less than 1.75:1 at full scale & less than 3.5:1 at half scale
	Input impedance: Transient protection: ACD-10 TRMS-PLUS:	10 MΩ, 30 pF nominal 6.5 kV (1.2/50 µs surge) True RMS sensing - 5% to 100% of range
AC Current (Clamp-on 50 Hz/60 Hz)
	40.00, 400.0, 600 A	±(1.5% + 8 dgt)^1,2,3
	Overload proctections: ACD-10 TRMS-PLUS	ACA Clamp-on jaws:600 A rms continuous Average sensing
	ACD-10 TRMS-PLUS	True RMS sensing - 10% to 100% of range
1) Max induced error from adjacent current carrying conductore: 0.05 A 2) Specified accuracy is from 1% to 100% of range and for measurements made at the jaw center. When the conductor is not positioned at the jaw center, position errors introduced are: Add 2% to specified accuracy for measurements made BEYOND jaw marking lines (toward jaw opening). 3) Add 8 digits to specified accuracy @ reading < 10% of range.
Resistance
	400.0 Ω 4.000, 40.00, 400.0 kΩ 4.000 MΩ 40.00 MΩ Open circuit voltage: Transient protection:	±(0.8% + 8 dgt) ±(0.6% + 4 dgt) ±(1.0% + 4 dgt) ±(2.0% + 4 dgt) 0.4 VDC typical 6.5 kV (1.2/50 µs surge)
Frequency
400.0 mVac 4.000 Vac 4.000, 40.00 Vac 400.0 Vac 600 Vac 400.0 Aac	0 Hz ~ 2 kHz 5 Hz ~ 5 kHz 5 Hz ~ 100 kHz 5 Hz ~ 10 kHz 5 Hz ~ 5 kHz 40 Hz ~ 400 Hz	±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt)
Display counts:	5000
Resolution:	0.001 Hz
Overload protection:	ACA Clamp-on jaws: AC 600 A rms continuous
Transient protection:	VAC input jacks: 6.5 kV (1.2/50 µs surge)
Capacitance
	Range¹	Accuracy^2,3
	500.0 nF, 5.000 µF 50.00 µF, 500.0 µF, 3000 µF	±(3.5% + 6 dgt)
1) Additional 50.00 nF range accuracy is not specified 2) Accuracies with film capacitor or better 3) Specified with battery voltage above 2.8 V (approx. half full battery.) Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4 V
Transient protection:	6.5 kV (1.2/50 µs surge)
Audible continuity tester
Audible indication:	between 10 Ω and 120 Ω
Transient protection:	6.5 kV (1.2/50 µs surge)
Max hold* (where applicable) Specified accuracy ± 50 digits for changes > 25 ms in duration
