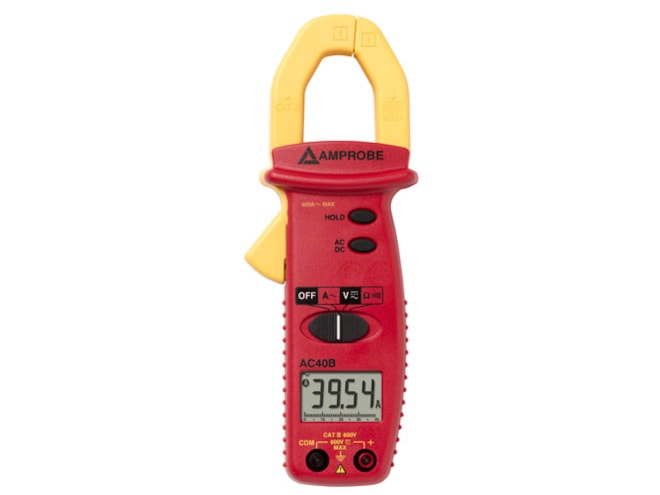

Amprobe AC40B Clamp-on Digital Multimeter

Mini-clamp digital multimeter measures 600 V AC & DC and 400 A AC.

Retired products cannot be ordered

View Company Reviews

Part Number

AC40B

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

600 V AC and DC range
400 A range
10 mA resolution
4000 count display w/bargraph
Autoranging
Data Hold
Auto-off
CAT III 600 V safety rating

The Amprobe AC40B clamp type digital multimeter measures AC and DC voltage to 600 V and AC amperage to 400 A. The Amprobe AC40B multimeter has a 3-3/4 digit, 4000 count, LCD display; overrange and low battery indication and a maximum jaw opening of 25.4 mm. Other features include autoranging, data hold and auto-off functions.

Amprobe AC40B clamp type digital multimeters ship complete with:

Test leads
Carrying case
Manual

Amprobe AC40B Clamp Type Digital Multimeter Specifications

Function	Range	Accuracy
DC Voltage
Ranges	400 V, 600 V	±(1.2% rdg + 5 dgt)
Resolution	0.1 V in 400 V range
Input impledance	1 MΩ
AC Voltage (50-400 Hz)
Ranges	400 V, 600 V	±(1.5% rdg + 10 dgt)
Resolution	0.1 V in 400 V range
Input impledance	1 MΩ
AC current
Ranges	40 A, 400 A	±(2% rdg + 10 dgt)
Resolution	0.01 A in 40 A range
Resistance
Range	400 Ω	±(1.5% rdg + 10 dgt)
Resolution	0.1 Ω in 400 Ω range
Continuity (audible)
Continuous Tone and ∙)))	Display at R < 40 Ω
Max open voltage	-1.2 V
Overload protection
660 A for AC current only
660 V RMS for all other measurements
