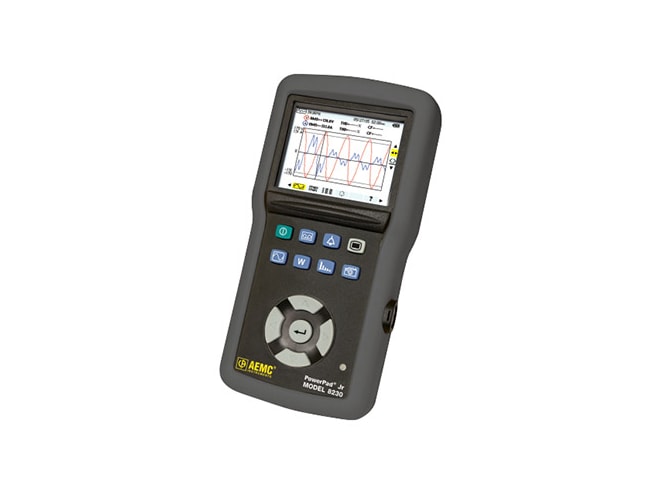

The AEMC PowerPad Jr. Model 8230 is a single-phase power quality analyzer that is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single-phase systems and three-phase balanced load networks. Users are able to obtain instant waveforms of an electrical network's characteristics, and also monitor their variation over a period of time.
The multi-tasking measurement system of the 8230 simultaneously handles all the measurement functions and waveform display of the various parameters, detection, continuous recordings, and their display without any constraints.
The AEMC model 8230 ships complete with:
Electrical | |
---|---|
Voltage (TRMS) | MN-2 Probes: 240 A, 6 A/120 A; Phase-to-phase: 660 V; Phase-to-neutral: 600 V |
Current (TRMS) | MN Probe: 5 mA to 6 A/120 A or 2 to 240 A; MR Probe: 10 to 1000 A AC, 10 to 1400 A DC; SR Probe: 3 to 1200 A; AmpFlex: 10 to 6500 A |
Frequency (Hz) | 40 to 70 Hz |
Other measurements | kW, kVAR, PF, DPF, kWh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation, in RUSH |
Harmonics | THD-R, THD-F, V, A, VA, 1st to 50th, Direction, Sequence |
Sampling Frequency | 256 samples/cycle |
Inrush | Displays and records duration, 1/2 cycle max, peak and displays waveforms |
Data storage | 1.5 MB partitioned for waveforms, alarms and trendrecording |
Alarms | Stores up to 2096 events showing time, duration and value |
Power source | NiMH rechargeable battery pack; AC supply: 120/230 V AC (50/60 Hz) |
Battery life | ≥ Eight hrs with display on ≥40 hrs with display off (recording mode) |
Mechanical | |
Communication port | Optically isolated USB |
Display | 1/4 VGA (320 x 240) color LCD |
Dimensions | 8.3 x 4.3 x 2.4" (211 x 108 x 60 mm) |
Weight | 1.9 lbs (0.88 kg) |
Safety rating | EN 61010, 600 V CAT III, IP 54, Pollution Degree 2 |
Display | |
Display type | Color LCD |
Environmental | |
Operating temperature | 32 to 122° F (0 to 50°C) |
Storage temperature | (< 30 days) -4 to 122°F (-20 to 50°C) with batteries. |
Safety | |
Safety rating | EN 61010-31:2002, EN 61010-1; 2001, EN 61010-2: 1995, 600 V CAT III, Pollution Degree 2 |
Double insulation | Yes |
CE Mark | Yes |
