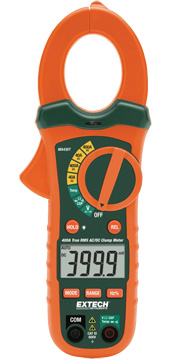

Extech MA435T AC/DC Clamp Meter

True RMS, functions include: AC/DC current, AC/DC voltage, resistance, frequency, capacitance, temperature, diode and continuity.

Retired products cannot be ordered

The Extech MA440 Series AC Clamp Meters is the recommended replacement

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs

Features

Built-in non-contact Voltage detector with LED alert
True RMS
Backlit LCD display
1.2 inch (30mm) jaw size for conductors up to 350MCM
CAT III 600V rating
Data hold
Low battery indication and auto power off
AC Current (max resolution) 400A (0.01A)
DC Current (max resolution) 400A (0.01A)
AC Voltage (max resolution) 600V (0.1mV)
DC Voltage (max resolution) 600V (0.1mV)
Resistance (max resolution) 40MΩ (0.1Ω)
Frequency (max resolution) 10Hz to 10kHz
Capacitance (max resolution) 100µF (0.01nF)
Temperature (max resolution) 4 to 1400°F (-20 to 760°C) (0.1°)
Diode / continuity

The Extech MA435T AC/DC Clamp Meter compact size allows measurements in tight locations and built-in non-contact voltage detector with LED alert. The MA435T measures true RMS and has all multimeter functions. It measures AC current, DC current, AC voltage, DC voltage, resistance, frequency, capacitance and temperature. The 1.2 inch (30mm) jaw can handle conductors up to 350MCM. The MA435T is provided with a low battery indication and an auto power off feature. This unit features a 4000 count display.

The Extech MA430T AC Clamp Meter ships complete with:
