Optris CTratio 2 Color Infrared Thermometer
Up to 5ms response time, 0.7 to 1.1µm spectral range & 1292 to 3272°F temperature range measures temperature even in low visibility.
Overview
Features
- Programmable 1 or 2 color modes
- 1292 to 3272°F temperature range
- 5ms to 10s response time
- 0.7 to 1.1µm spectral range
- 40:1 optical resolution
- 0.05 to 1 emissivity
- 0/4 to 20mA, 0 to 5/10V analog output
- Fiberglass cable resistant to high temperatures
- 8-36VDC power supply
- 200mA max current draw
- IP65 NEMA-4 rated
What's in the Box
- 2 mounting nuts
- ACCTFBMH mounting bracket
- Fiberglass cable
- Electronic box with LCD display
- Programming keys
- Manual
Description

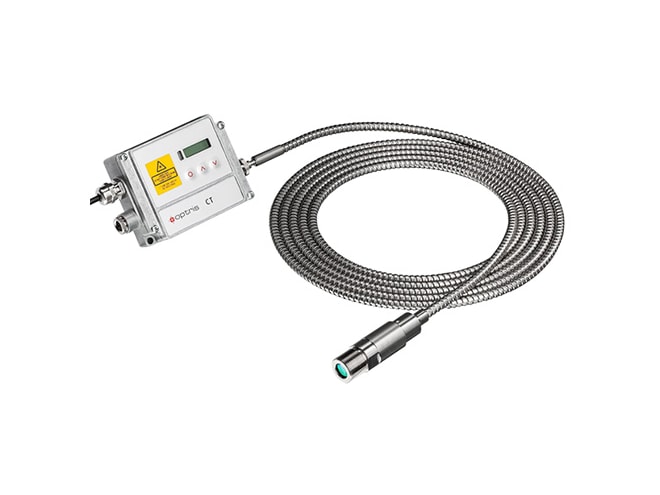

The Optris CTratio 2 color infrared thermometer is ideal for measuring high temperature metals, it's short measuring wavelength 5ms to 10s response time enable the CTratio to accurately measure very fast processes. It is generally unaffected by dust and steam, and can even maintain high accuracy through dirty observation windows. It can operate in temperatures up to 482°F without impacting measurements or requiring additional cooling.
A built in laser marks actual spot size at any distance. Adjustable signal processing features include 1 and 2 color mode, attenuation monitoring, alarm, peak hold, valley hold, average, and extended hold function with threshold and hysteresis.
The Optris Compact Connect temperature analysis software is available as a free download, and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
