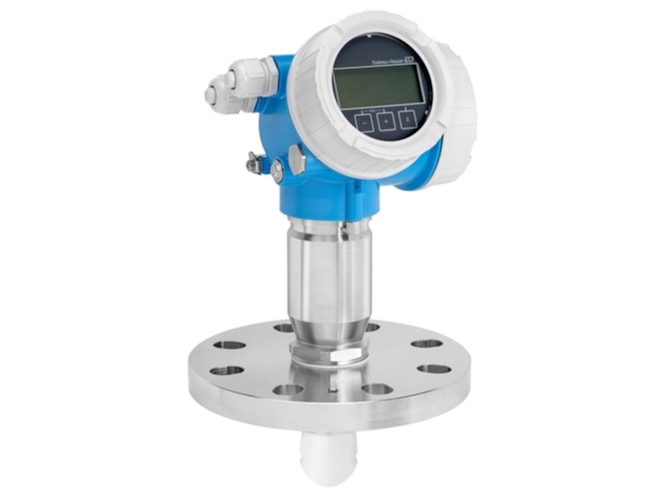

E+H Micropilot FMR60 Radar Level Transmitter

Name: E+H Micropilot FMR60 Radar Level Transmitter
Price: 3892.31 USD
Availability: InStock

Highest demands in liquid level measurement with 80GHz technology, drip-off antenna, improved algorithms and small beam angle.

Starting at $3,892.31

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

80GHz technology
HistoROM data management
Innovative drip-off antenna of PTFE
Threads or flanges process connections
-40 to 266°F (-40 to 130°C) temperature
-14.5 to 232 psi (-1 to 16 bar) pressure
164ft (50m) maximum measuring range
0.04 in (±1mm) accuracy
80GHz W-band
International explosion protection certificates available

Common Use: Process tanks with many obstacles such as agitators, ladders, and fittings.

The E+H Micropilot FMR60 Radar Level Transmitter is the first 80GHz radar developed according to the international functional safety directive IEC 61508. The free space radar offers maximum reliability due to the drip-off antenna, improved algorithms and small beam angle. It is used for continuous non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. It also possesses the smart sensor functionality Heartbeat Technology.

Spec Sheets

E+H Micropilot FMR60 Radar Level Transmitter Datasheet PDF (2.0 MB)

Other

Instrumart's Level Application Form (141 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H FHX50 Remote Display

Transmitter electronics for radar level transmitters and vortex flow meters.

Mfg. has some models in stock

Starting at $775.03

Accessories

Please consider these optional accessories.

E+H FHX50B Remote Display

Level transmitter bluetooth display.

Mfg. has some models in stock

Starting at $753.45

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMR60-AAANCDGAA3XKG	Call for information	3	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
