Name: Pyxis MA-WB Bluetooth Adapter
Price: 203.0 USD
Availability: BackOrder

$203.00

View Company Reviews

Part Number

MA-WB

Manufactured

By Pyxis

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Features

7-Pin
24VDC (±2) @ 10mA from Controller
40-122°F operational temperature
IP54 rating

This product is an accessory for the following products:

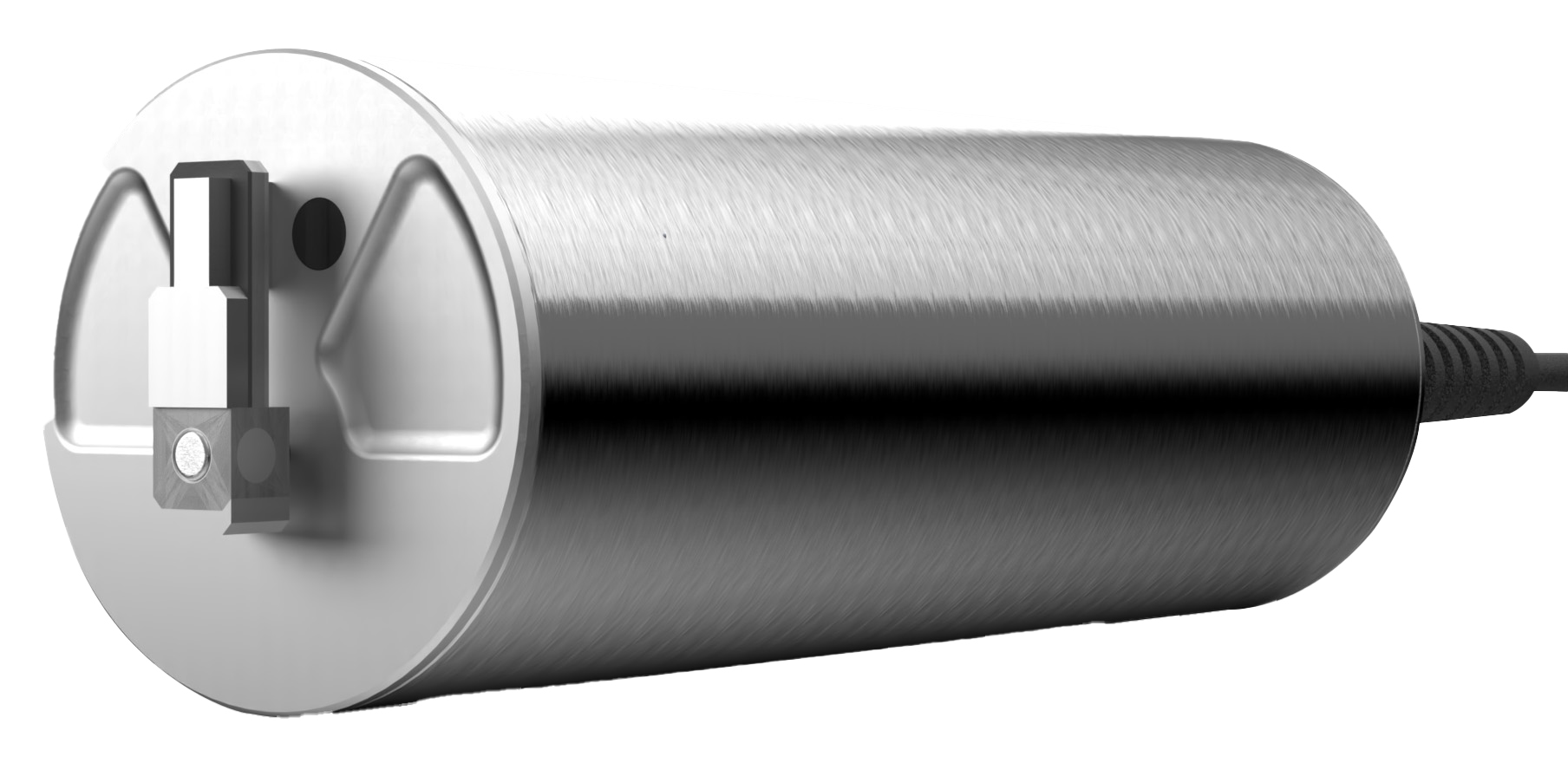

Pyxis LT-63X Series Self-Wiping & Submersible Turbidity Sensors

Resolution as low as 0.1 NTU.

Starting at $5,099.00

Pyxis ST-500 Inline Fluorometer

Measures the concentration of PTSA in cooling towers and RO water systems.

Starting at $2,055.00

Pyxis ST-71X Series Industrial pH & ORP Sensors

Can be utilized in both 4-20mA or RS-485 Modbus formats.

Starting at $838.00

Pyxis ST-720 / ST-726 High Range Smart Conductivity Sensors

Dynamic range 1-100,000 µS/cm and 10-300,000 µS/cm.

Starting at $1,003.00

Pyxis ST-73X Series Inline Turbidity Sensors

Isolated - 4–20mA analog, isolated RS-485 digital.

Starting at $1,671.00

Pyxis ST-772 Series Luminescent Dissolved Oxygen Sensors

Built-in temperature & pressure sensor with automatic compensation.

Starting at $2,044.00

Pyxis ST-774 Ultra-Low Luminescent Dissolved Oxygen Sensor & Flow Cell

0.4–2,000µg/L Measurement Range.

$3,146.00

The Pyxis MA-WB Inline Bluetooth Adapter is a uniquely designed accessory, which enables Pyxis Lab inline sensors to be accessed, viewed, configured and calibrated via the uPyxis app. The MA-WB offers a Bluetooth 5.0 wireless platform in a 7-Pin formats, enabling connectivity to any of the 7-pin sensor designs offered by Pyxis.

The MA-WB is designed to be installed easily and without the need for tools. The MA-Series are “quick-adapters” that can fit inline with the corresponding sensor conductor pin format. When installed, the MA-WB utilizes the power provided (24VDC) from the controller it is connected to, passing that power supply through to the connected Pyxis Lab inline sensor. Additionally, each MA-Series inline adapter offers 4-20mA and/or RS485 Modbus connectivity from the sensor to the receiving controller.

In addition to rapid connection and Bluetooth accessibility, the MA-WB also provides a live local display, diagnostics & calibration hub, and data-log capabilities. Simply use the user buttons on the top of the unit to navigate through these options.
