Starting at $233.73

Overview

Features

  • 3.94in (100mm) nominal size
  • For corrosive gases and liquids
  • Stainless steel or Monel wetted parts
  • Dry and liquid-filled versions
  • Lloyd's Register approval
  • IP 65 (EN 60529) protection rating
  • ATEX II2GDc-IM2c option

Description

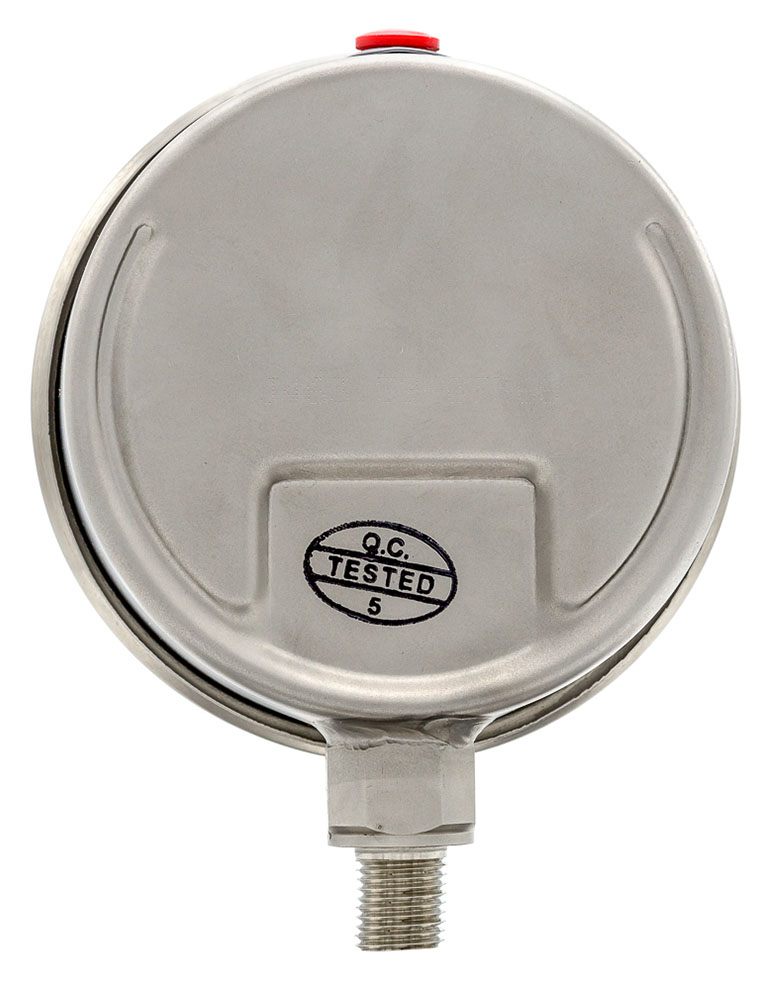

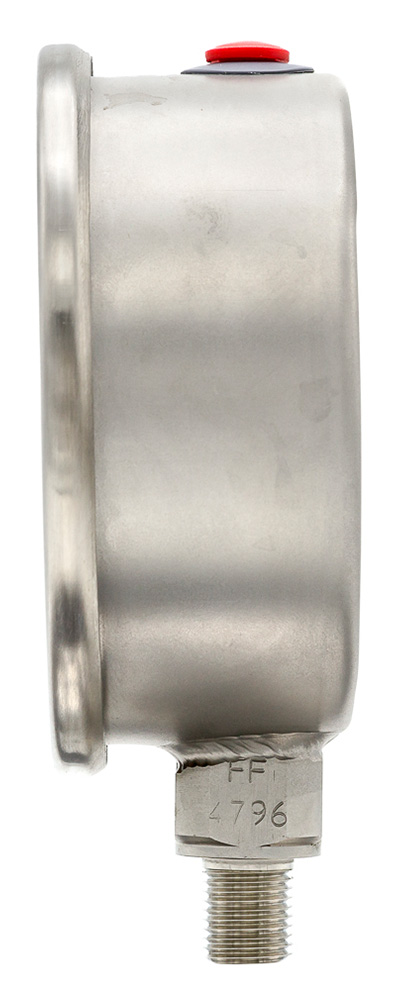

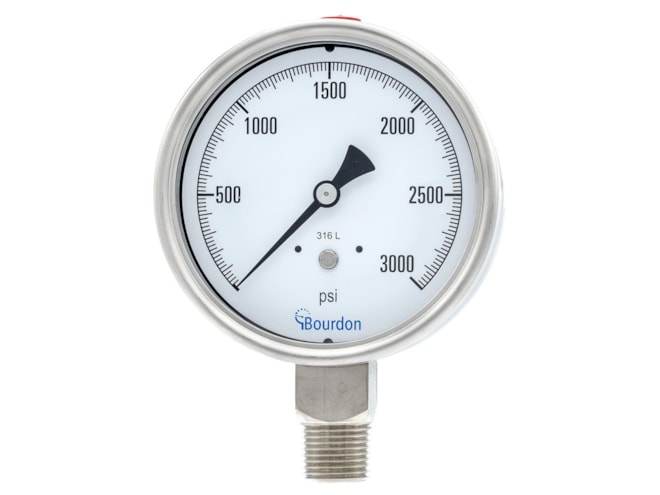

The Bourdon MEX5 Pressure Gauge is an analog, bourdon tube gauge designed for use with corrosive gases and liquids. Pressure ranges are available from vacuum to 20,000psi, including compound and metric ranges. With a nominal size of 3.94in (100mm), the gauge features a stainless steel case, stainless steel or Monel bourdon tube and process connection, and a stainless steel bezel ring.

The Bourdon MEX5 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil. Standard accuracy is ± 1% (Class 1 according to EN 837-1). Multiple process connection options are available, including M20 x 1.5, up to 3/8in NPT, and up to G 3/8in.

Applications

  • Laboratory and medical
  • Oil and gas
  • Food and beverage
  • Energy
  • Transportation and logistics
  • Water and waste water
  • Machinery

In Stock

Manufacturer Stock

Part Number Case and Bezel Ring Material Mounting Type Process Connection Liquid Filling Unit of Measurement Pressure Range Price Available
MEX5-D60.H2C
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
-30inHg to 60psi
$190.13 2172 in stock
MEX5-D62.H34/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 3,000psi
$240.88 843 in stock
MEX5-D60.H30/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 1,000psi
$206.35 469 in stock
MEX5-D62.H25/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 300psi
$210.84 255 in stock
MEX5-D60.H22/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 160psi
$176.31 136 in stock
MEX5-D60.H23
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 200psi
$141.60 129 in stock
MEX5-D60.H27/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 600psi
$176.31 122 in stock
MEX5-D60.H21/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 100psi
$176.31 120 in stock
MEX5-D60.H40/0760
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 10,000psi
$204.60 120 in stock
MEX5-D62.H30/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 1,000psi
$240.88 110 in stock
MEX5-D60.H34/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 3,000psi
$206.35 102 in stock
MEX5-D62.H40/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 10,000psi
$259.37 100 in stock
MEX5-D60.H23/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 200psi
$176.31 96 in stock
MEX5-D60.H19/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 60psi
$176.31 93 in stock
MEX5-D60.H25/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 300psi
$176.31 90 in stock
MEX5-D60.H26/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 400psi
$176.31 77 in stock
MEX5-D60.H59/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
-30inHg to 0psi
$224.84 76 in stock
MEX5-D60.H31
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 1,500psi
$171.64 59 in stock
MEX5-D62.H17/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 30psi
$210.84 57 in stock
MEX5-D62.H40
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 10,000psi
$224.66 52 in stock
MEX5-D60.H17
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 30psi
$141.60 50 in stock
MEX5-D60.H40/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 10,000psi
$224.84 47 in stock
MEX5-B30.B35
1.4301 (AISI 304) stainless steel
Back connection, front flange, 3 mounting holes
G 1/2in
Dry
bar
0 to 250bar
$282.31 39 in stock
MEX5-D60.H25
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 300psi
$141.60 38 in stock
MEX5-D60.H31/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 1,500psi
$206.35 36 in stock
MEX5-D62.H27/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 600psi
$210.84 36 in stock
MEX5-D62.H31/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 1,500psi
$240.88 31 in stock
MEX5-D62.H21/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 100psi
$210.84 26 in stock
MEX5-D50.H23/0679
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 200psi
$148.90 23 in stock
MEX5-D60.H26
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 400psi
$141.60 22 in stock
MEX5-D60.H21
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 100psi
$141.60 21 in stock
MEX5-D51.H40
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 10,000psi
$224.66 18 in stock
MEX5-D60.H27
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 600psi
$141.60 18 in stock
MEX5-D62.H26/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 400psi
$210.84 15 in stock
MEX5-460.B27
1.4404 (AISI 316L) stainless steel
Bottom connection
1/2in NPT
Dry
bar
0 to 40bar
$161.24 14 in stock
MEX5-D60.H75/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
-30inHg to 30psi
$224.84 14 in stock
MEX5-D62.H38/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 6,000psi
$240.88 14 in stock
MEX5-460.B79
1.4404 (AISI 316L) stainless steel
Bottom connection
1/2in NPT
Dry
bar
-1 to 9bar
$209.77 13 in stock
MEX5-460.B41
1.4404 (AISI 316L) stainless steel
Bottom connection
1/2in NPT
Dry
bar
0 to 1,000bar
$258.87 12 in stock
MEX5-D50.H79
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
-30inHg to 150psi
$190.13 12 in stock
MEX5-D60.H79
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
-30inHg to 150psi
$190.13 12 in stock
MEX5-D32.B24
1.4301 (AISI 304) stainless steel
Bottom connection
G 1/2in
High viscosity glycerin, 99.5%
bar
0 to 16bar
$211.89 9 in stock
MEX5-D50.D22
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
kPa
0 to 1,000kPa
$141.60 9 in stock
MEX5-D62.H75/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
-30inHg to 30psi
$259.37 9 in stock
MEX5-A60.B79
1.4301 (AISI 304) stainless steel
Bottom connection, 3 back lugs fixing
1/2in NPT
Dry
bar
-1 to 9bar
$233.73 8 in stock
MEX5-B50.H34
1.4301 (AISI 304) stainless steel
Back connection, front flange, 3 mounting holes
1/4in NPT
Dry
PSI
0 to 3,000psi
$282.31 8 in stock
MEX5-D30.B22
1.4301 (AISI 304) stainless steel
Bottom connection
G 1/2in
Dry
bar
0 to 10bar
$177.36 8 in stock
MEX5-D50.H23/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 200psi
$176.31 8 in stock
MEX5-D50.H40
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 10,000psi
$190.13 8 in stock
MEX5-D61.H19/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 60psi
$210.84 8 in stock
MEX5-F31.H22
1.4301 (AISI 304) stainless steel
Back connection
G 1/2in
Low viscosity glycerin/water, 86%
PSI
0 to 160psi
$208.67 8 in stock
MEX5-B50.H25
1.4301 (AISI 304) stainless steel
Back connection, front flange, 3 mounting holes
1/4in NPT
Dry
PSI
0 to 300psi
$252.27 7 in stock
MEX5-D60.H38/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 6,000psi
$206.35 7 in stock
MEX5-A50.B20/0679
1.4301 (AISI 304) stainless steel
Bottom connection, 3 back lugs fixing
1/4in NPT
Dry
bar
0 to 6bar
$228.26 6 in stock
MEX5-D30.B27
1.4301 (AISI 304) stainless steel
Bottom connection
G 1/2in
Dry
bar
0 to 40bar
$141.60 6 in stock
MEX5-D30.H21
1.4301 (AISI 304) stainless steel
Bottom connection
G 1/2in
Dry
PSI
0 to 100psi
$141.60 6 in stock
MEX5-D60.H15/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 15psi
$212.07 6 in stock
MEX5-D60.H30
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 1,000psi
$171.64 6 in stock
MEX5-A60.H25
1.4301 (AISI 304) stainless steel
Bottom connection, 3 back lugs fixing
1/2in NPT
Dry
PSI
0 to 300psi
$185.20 5 in stock
MEX5-D20.D26
1.4301 (AISI 304) stainless steel
Bottom connection
G 1/4in
Dry
kPa
0 to 2,500kPa
$141.60 5 in stock
MEX5-D50.H17
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 30psi
$141.60 5 in stock
MEX5-D50.H27/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 600psi
$176.31 5 in stock
MEX5-D50.H75
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
-30inHg to 30psi
$190.13 5 in stock
MEX5-D53.H22
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Silicone oil
PSI
0 to 160psi
$181.17 5 in stock
MEX5-D60.B24
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
bar
0 to 16bar
$177.36 5 in stock
MEX5-D60.H22
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 160psi
$141.60 4 in stock
MEX5-D62.H59/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
-30inHg to 0psi
$259.37 4 in stock
MEX5-D50.H19/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 60psi
$176.31 3 in stock
MEX5-D50.H23
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 200psi
$141.60 3 in stock
MEX5-D60.H38
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 6,000psi
$171.64 3 in stock
MEX5-B50.H19
1.4301 (AISI 304) stainless steel
Back connection, front flange, 3 mounting holes
1/4in NPT
Dry
PSI
0 to 60psi
$252.27 2 in stock
MEX5-B50.H27
1.4301 (AISI 304) stainless steel
Back connection, front flange, 3 mounting holes
1/4in NPT
Dry
PSI
0 to 600psi
$252.27 2 in stock
MEX5-D50.H22
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 160psi
$141.60 2 in stock
MEX5-D50.H30
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 1,000psi
$171.64 2 in stock
MEX5-D52.H23
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
PSI
0 to 200psi
$176.13 2 in stock
MEX5-D60.B20
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
bar
0 to 6bar
$177.36 2 in stock
MEX5-D60.B26
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
bar
0 to 25bar
$177.36 2 in stock
MEX5-D60.H40
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 10,000psi
$190.13 2 in stock
MEX5-D61.H21/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 100psi
$210.84 2 in stock
MEX5-D61.H23/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 200psi
$210.84 2 in stock
MEX5-D61.H25/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 300psi
$210.84 2 in stock
MEX5-D62.H22/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 160psi
$210.84 2 in stock
MEX5-G50.H34
1.4301 (AISI 304) stainless steel
Back connection with clamp
1/4in NPT
Dry
PSI
0 to 3,000psi
$254.78 2 in stock
MEX5-A50.B74
1.4301 (AISI 304) stainless steel
Bottom connection, 3 back lugs fixing
1/4in NPT
Dry
bar
-1 to 1.5bar
$233.73 1 in stock
MEX5-B60.H25
1.4301 (AISI 304) stainless steel
Back connection, front flange, 3 mounting holes
1/2in NPT
Dry
PSI
0 to 300psi
$252.27 1 in stock
MEX5-D50.B22
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
bar
0 to 10bar
$177.36 1 in stock
MEX5-D50.H25
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Dry
PSI
0 to 300psi
$141.60 1 in stock
MEX5-D51.H25/0679
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 300psi
$183.43 1 in stock
MEX5-D51.H34/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 3,000psi
$240.88 1 in stock
MEX5-D52.H22
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
PSI
0 to 160psi
$176.13 1 in stock
MEX5-D52.H22/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
PSI
0 to 160psi
$210.84 1 in stock
MEX5-D52.H34/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
PSI
0 to 3,000psi
$240.88 1 in stock
MEX5-D60.B22
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
bar
0 to 10bar
$177.36 1 in stock
MEX5-D60.H41/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Dry
PSI
0 to 15,000psi
$273.84 1 in stock
MEX5-D61.H30/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
Low viscosity glycerin/water, 86%
PSI
0 to 1,000psi
$240.88 1 in stock
MEX5-D62.H23/0133
1.4301 (AISI 304) stainless steel
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
PSI
0 to 200psi
$210.84 1 in stock
MEX5-F50.H34
1.4301 (AISI 304) stainless steel
Back connection
1/4in NPT
Dry
PSI
0 to 3,000psi
$204.18 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Click here to select options
