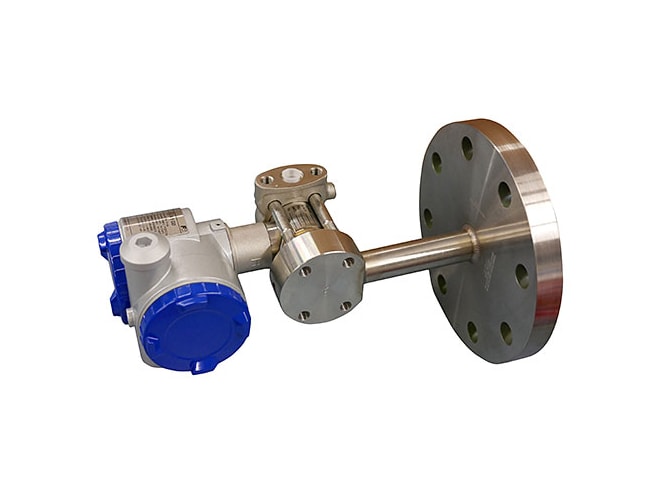

Fuji Electric V6 Series FKE Level Transmitter
Measures liquid levels for pressures up to 426 psi, universal HART communications protocol.
Overview
Features
- Range up to 300 mH2O
- Up to ±0.1% accuracy
- 40ms response time
- Process temperature:
- -4 to 248°F (-20 to 120°C) for fluorinated oil
- -40 to 302°F (-40 to 150°C) for silicone oil
- ±0.2% of upper range limit stability
- HART 7 communication protocol
- Safety Integrity Level 2 or 3 according to IEC 61508 and IEC 61511 standards
- Hazardous area approvals
- IP66/IP67 and NEMA 4X
- 5-digit local display
- Optional LCD display with 3 magnetic push buttons for contactless configuration
Description
The Fuji Electric V6 Series FKE level transmitter accurately measures liquid levels and transmits a proportional 4-20 mA output signal. The transmitter uses a unique micro-capacitive silicon sensor and state-of-the-art digital signal processing to provide exceptional accuracy and stability. The transmitter's silicon sensor assures this accuracy for all elevated or suppressed calibration ranges without additional adjustment.
The FKE V6 transmitter's advanced floating cell technology protects against temperature variations, static pressure and overpressure commonly found in the process industry, and substantially reduces the overall measurement error. The burnout current value can be adjusted in the ranges of 3.4 to 3.8 and 20.8 to 22.5 mA, and can be compliant with NAMUR NE43 recommendations. The transmitter's output signal can be linearized using up to 14 points.
The electronics unit, local indicators and electronics housing are interchangeable among all FCX-AIV V6 transmitters. Various options are available to address a wide range of process industry applications, including a full range of hazardous area approvals, a built-in RFI filter and lightning arrester, 5-digit local display with engineering units, stainless steel electronics housing, and a wide selection of wetted part materials. An optional local configurator with three magnetic switches allows the user to configure the transmitter without opening the indicator cover.
