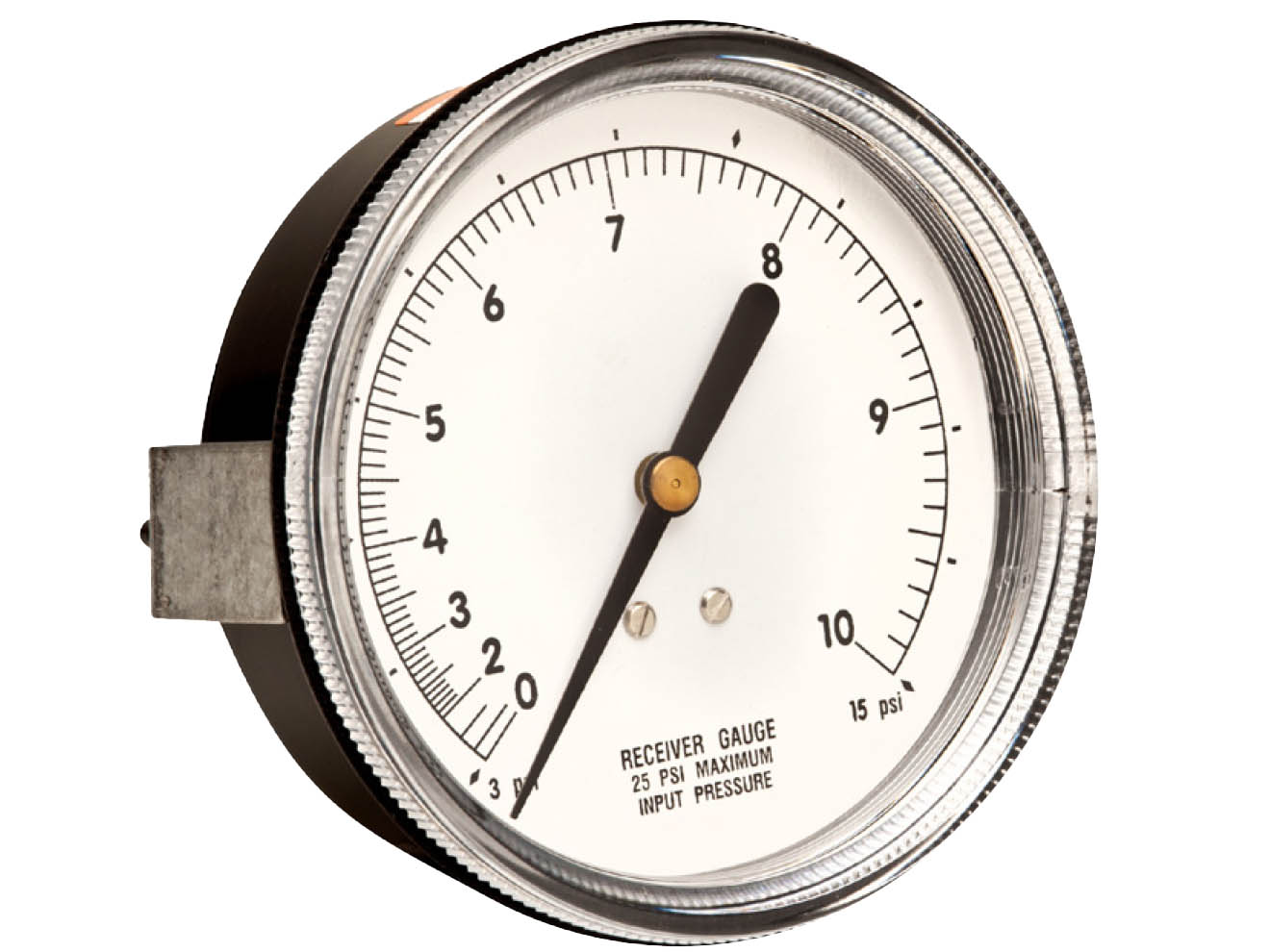

US Gauge Model 1370 Pneumatic Receiver Gauge

Pneumatic transmitter for converting process variables into proportional air pressure signal.

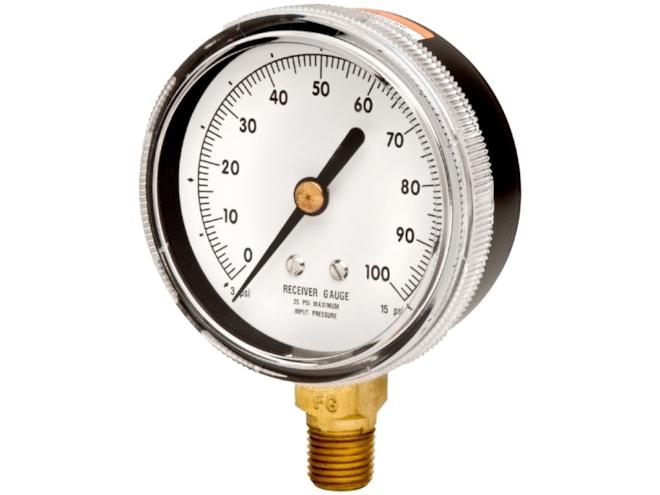

US Gauge Model 1370 Pneumatic Receiver Gauge Low Mount
US Gauge Model 1370 Pneumatic Receiver Gauge

Starting at $170.12

View Company Reviews

Manufactured

By US Gauge

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Specs

Features

±(2-1-2% FS)
Size: 2", 2.5" or 2.5"
Pressure Ranges: 0 to 100 psi depending on model

The Model 1370 pressure gauges are specifically designed for use with pneumatic transmission of process variables. The model 1370 is compatible with a wide variety of transmitters capable of converting flow, temperature, differential pressure, and level into a proportional air pressure signal. 2", 2½", and 3½" gauge sizes are available for panel or stem mounting.

The Model 1370 receiver gauge provides a graduation arc of 2700, for a pressure change of 3 to 15 psi; or a span of 12 psi. Transmitters are calibrated so that lowest value of the variable to be measured creates a pressure signal of 3 psi; while the highest value creates a pressure signal of 15 psi.
