Pyxis FS-100 NanoFlow Sample Flow Measurement & Regulation Control Module

Name: Pyxis FS-100 NanoFlow Sample Flow Measurement & Regulation Control Module
Price: 1545.0 USD
Availability: BackOrder

Ultrasonic flow meter with local display capable of 0-3,000mL/min measurement.

$1,545.00

View Company Reviews

Part Number

21329

Manufactured

By Pyxis

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Manual Product Specs

Features

40-120°F fluid temperature
7.25-30psi (0.05-0.2MPa) sample inlet pressure
0-3,000mL/min rated flow range
1mL/min resolution
+/- 2% of the value max error
32-122°F operation temperature
4-20mA for flow rate, 4-20mA for regulating valve (internally connected) analog output
Panel mounted
Built-in temperature sensor automatically compensates the effect of temperature on flow rate

What's in the Box

Nano Flow Ultrasonic Flow Meter
Nano Flow Motorized Valve
Nano Flow Electric Control Box
CE-FE-4.9 Flying Lead Cable with Female 7-Pin Adapter – 1.5m/4.9 feet (P/N: 50762)
MA-AC-7US 110VAC-24VDC Cable w/Plug & Female 7-Pin Adapter – 1.5m/4.9 feet (P/N: 26398)

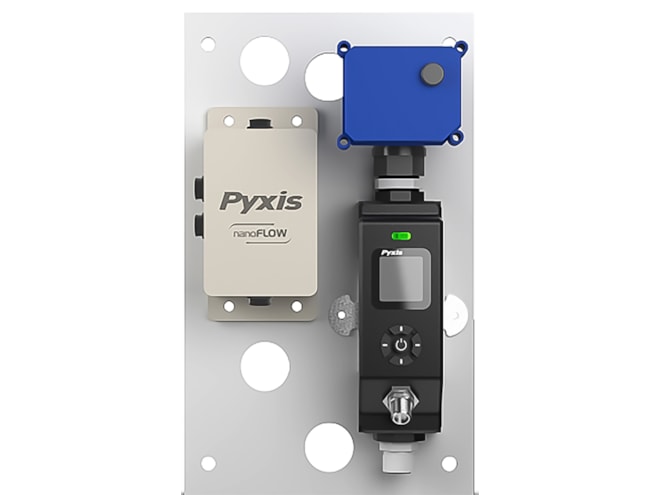

The Pyxis FS-100 NanoFlow Sample Flow Measurement & Regulation Control Module is a stand-alone water flow measurement and control solution. The Nano-Flow is designed for use in critical cooling and process water sample flow applications. This unique platform provides precise flow measurement and regulation. Furthermore, the Nano-Flow module is offered in a micro-panel design and is equipped with the Pyxis FS-100 ultrasonic flowmeter with a display, which directly controls a pre-mounted regulating valve through a user interface.

The new FS-100 operates on the principle of transit time difference with a measurement range of 0-3,000mL/min and resolution of 1mL. In addition, the sensors advanced PCB design offers built-in temperature compensation to eliminate the effect of temperature with instantaneous, accumulated and controlled water flow based on user setpoint within the sensor itself.

The flow control module incorporates an electric box for panel power supply, as well as an internal regulating valve control and FS-100 output flow signal wiring both 4-20mA and RS-485 Modbus for connection to any OEM controller, PLC or DCS.
