Name: Pyxis PRISM RT-Series Ultrasonic Cleaning Module Kit
Price: 1832.0 USD
Availability: BackOrder

Pyxis PRISM RT-Series Ultrasonic Cleaning Module Kit

$1,832.00

View Company Reviews

Part Number

56208

Manufactured

By Pyxis

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Specs

Features

316L stainless steel body
64mm sanitary fitting compatible
Insertion opposite side of the RT-100 optical lens
Periodic timed control via RT-100 Display Interface (5/15/30min increments, default = 15)
Operation duration per period (5sec)
Power/control box included (100 to 220VAC), powers both ultrasonic module & RT-100 sensor
Trigger signal directed from RT-100 setting back to power/control box, then to ultrasonic module
RT-100 refractive index override prevents ultrasonic transducer operation when no liquid is seen

This product is an accessory for the following products:

$Pyxis RT-100 PRISM Inline Refractometer$

Pyxis RT-100 PRISM Inline Refractometer

4-20 mA output of sample temperature and the unit of display selected via the screen interface .

$4,005.00

$Pyxis RT-200 PRISM High Temperature Inline Refractometer$

Pyxis RT-200 PRISM High Temperature Inline Refractometer

RS-485 Modbus RTU output of temperature, refractive index and other diagnosis parameters.

$6,180.00

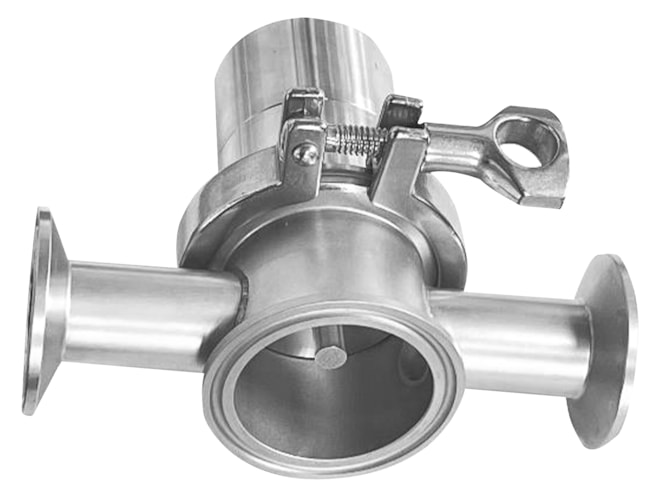

The Pyxis PRISM RT-Series Ultrasonic Cleaning Module Kit is an ultrasonic vibration assembly specifically designed as an accessory for installation and use with the RT-100 PRISM Refractive Index Sensor. The PRISM is an inline digital refractometer that measures the refractive index of a liquid sample and provides a direct reading of highly accurate concentration values for a wide variety of water and process related applications.

Each RT-100 PRISM is provided with a Tri-Clamp Flow Assembly for bypass flow installations, and contains a port specifically designed for the use of the Ultrasonic RT-100 Cleaning Module Kit. Ultrasonic cleaning can be highly effective at preventing the accumulation of tenacious or sticky deposits on the RT-100 sensor eye. This accessory is highly suited for continuous operation applications in water or process applications where sensor fouling and deposit build-up is of concern.

The working cycle of the cleaning module can be programmed to 5, 15, and 30-minute cycles directly through the display settings of the RT-100 unit itself. Each cleaning cycle time is approximately 5 seconds in duration. The cleaning module is provided with a power supply and control box that works synchronously with the RT-100.
