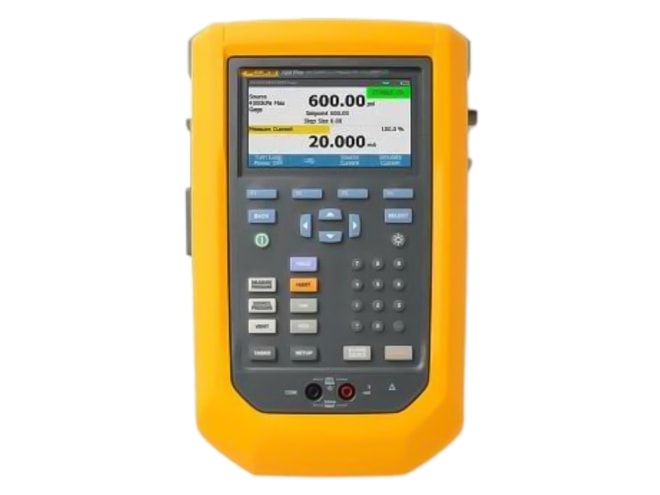

Fluke 729 Pro 4M Automatic Pressure Calibrator
Automatic pressure generation and regulation to 1000psi.
- 5300476
- By Fluke
Overview
Features
- -13 to 600 psi, -90 to 4000 kPa, -0.90 to 40 bar pressure control range
- 0.02% of FS, 0.005% of FS pressure accuracy and control stability
- -10 °C to 50 °C operating temperature
- 24 V dc loop power
- 4 replaceable pressure measurement modules
Description
Fluke 729 Pro 4M Automatic Pressure Calibrator is designed specifically for process technicians to simplify the pressure calibration process and provide accurate test results. With an automatic internal electric pump, a target pressure can be set in 729 Pro. The calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilizes the pressure at the required value.
The Fluke 729 Pro can also automatically test multiple pressure test points and automatically document the results. Calibration only involves typing in the starting and ending pressure and the number of test points and tolerance level. Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration and the ability to adjust to applied 0% and 100% pressure values.
The 729 Pro can be widely used in electric power, petroleum, chemical, pharmaceutical, metrology, metallurgy, biology, food, transportation and automobile manufacturing.
