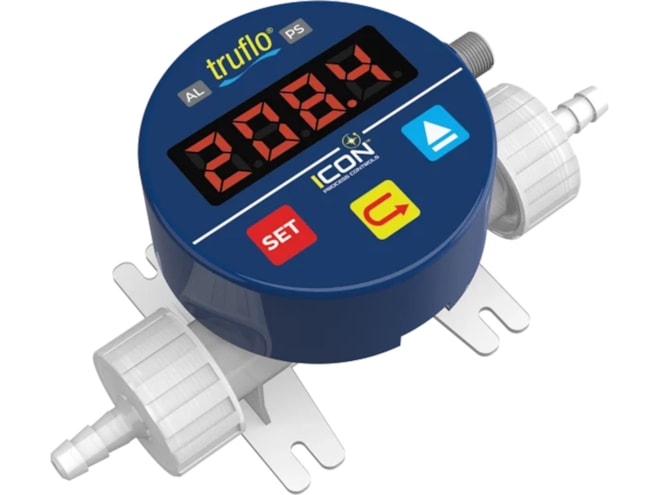

ICON Truflo ProPulse 2 Series Mini Turbine Flow Meter

Name: ICON Truflo ProPulse 2 Series Mini Turbine Flow Meter
Price: 404.1 USD
Availability: BackOrder

Compact, lightweight designed flow meter with excellent chemical resistance, perfect for metering or dosing applications.

Starting at $449.00 Starting at $404.10

Effective April 10th, 2025 ICON Process Controls has added a 25% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By ICON Process Controls

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 7-10 business days

Product Manual Product Specs

Features

Excellent chemical resistance
Perfect for metering or dosing applications
Ultra low flow ranges, 40ml/min and 0.01 GPM
Hose barb, threaded, flared, and straight pipe end connection options
NPN or PNP pulse output, 4-20mA and RS485
Compact, lightweight design
PPM and PPR:
- NEMA 4X, IP65
PPW
- NEM 4X IP65
Blind or display options available

The ICON Truflo ProPulse 2 Series is a high performance and accurate Ultra-Low Flow measurement that is highly repeatable under the most demanding of industrial environments. The ProPulse 2 operates using a PVDF rotor with encapsulated magnetic inserts, which rotate on a long-wearing set of sapphire bearings designed to provide years of reliability. As the rotor spins, the magnetic field produced by the magnets is picked up via a Hall Effect Sensor, which converts the rotation into a square wave NPN pulse, 4 – 20mA, or RS485 output that can be sent directly to a metering pump or local display.
