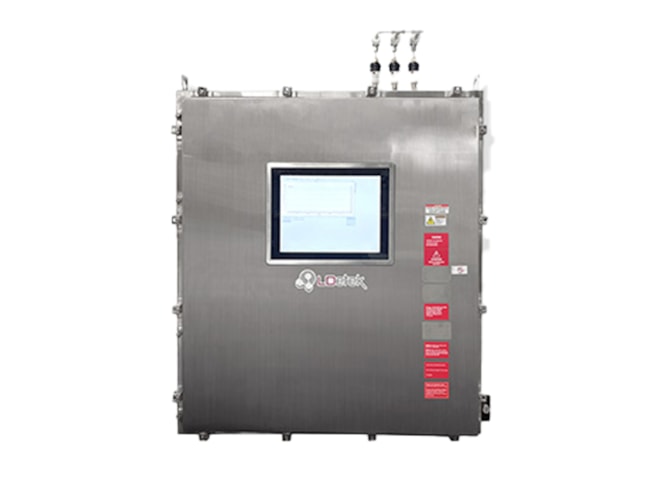

LDetek MultiDetek3 EX Multi-Stream Gas Chromatograph System

Multi-stream gas chromatograph system for hazardous areas.

Cabinet Integration and Sample Systems available

Call for pricing

View Company Reviews
Part Number
  • MultiDetek3 EX
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Explosion proof for use in Zone 1 and Zone 2
  • Integrate multiple instruments and sampling systems all in one unit
  • Easy to swap and access units inside enclosure with slide out design
  • Wall mount or floor mount available
  • LAN remote control for GC and stream selector
  • LDChroma industrial GC interface with LDReport database software
  • Industrial communication protocols (Modbus-Profibus from Ethernet/RS232/RS485)
  • Up to 10 analog outputs 4-20mA
  • Up to 6 isothermal ovens to fit capillary, micropacked or packed columns with easy access to replace columns
  • Can combine up to 3 detectors in one GC (PED,TCD,FID, Quartz crystal for H2O, electrochemical sensors or third-party sensor)
  • Analysis in ppb/ppm/%
  • One status alarm contact and two levels alarm contacts available
  • One status alarm contact and two levesl alarm contacts are available
  • A non-purged version is available for use in safe zones
  • 100 psi carrier gas pressure
  • 5 to 30 psi (0.35 to 2 bar) sample gas pressure
  • -4 to 117°F

The LDetek MultiDetek3 EX Multi-Stream Gas Chromatograph System is an innovative design based on simplicity. The standard industrial compact GC model MultiDetek3 is now integrated inside a Stainless Steel certified (ATEX-IECEx) purged enclosure to be used in Zone 1 and Zone 2 hazardous areas. This ‘‘EX’’ series allows to keep the proven robust industrial platform features of the MultiDetek3 with its LDChroma software interface. It also allows to mount more than one GC or other instruments/accessories in the same MultiDetek3 EX purged enclosure. On top of that, using the standard rackmount platform of the MultiDetek3 mounted on a slide out system makes it easy to swap units inside the enclosure for maintenance or application upgrade. A multi streams/GCs and methods all in one system approaches was the objective with the launch of the MultiDetek3 EX series.

Applications:

  • Hydrogen production
  • Hy/CO Plants
  • Hydrocarbons processing
  • Petrochemicals (measurement of CO-CO2)
  • Chemical plants
  • Natural gas/LNG processing
  • Electronic gases
  • Air separation units (ASU)
  • Refineries (analysis of CO in propylene and ethylene)
  • Synthesis gas (measurement of H2)
