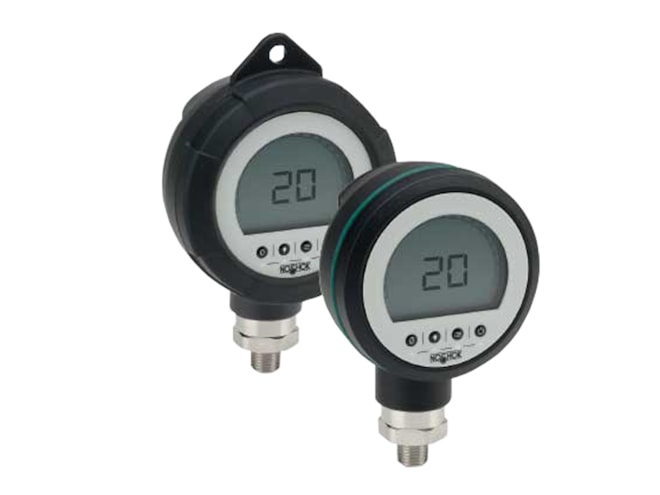

Name: NOSHOK PGE20 Series Digital Pressure Gauge
Price: 645.59 USD
Availability: BackOrder

NOSHOK PGE20 Series Digital Pressure Gauge

Starting at $645.59

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Manual Product Specs

Features

Gauge pressure: 0-15000 psig
Compound: -15-600 psig
Absolute: 0-500 psia
±0.50% of Full Scale accuracy (standard), ±0.25% FS (optional)
4-1/2 digit display with 0 to 100% bar graph in 5% steps
Programmable units: psi, bar, mbar, MPa, kg/cm2 and 1 user-defined unit
Optional data logger
Min/Max Alarm (visual)
Battery status display
Backlighting
316L stainless steel wetted parts, 1/4" MNPT connection
±0.50% of full scale, including non-linearity, hysteresis, zero offset, and end point deviation per IEC 61298-2
PBT with 30% glass fiber case
Temperature ranges:
- Media -4 °F to 122°F
- Operating 14 °F to 122 °F
3 x 1.5 V AA Alkaline batteries
200ms response time
IP65

The NOSHOK PGE20 Series Digital Pressure Gauge provides local digital indication of pressure in place of traditional mechanical gauges. Accuracy, reliability and mechanical resilience make this digital gauge suitable for pressure measurement in a multitude of applications.

Standard pressure ranges on NOSHOK 1000 Series digital pressure gauges are available from 0 to 5 psig and as high as 0 to 105000 psig. Standard accuracy is ±0.5% full scale. The wetted parts are made of stainless steel which is resistant to many chemically aggressive media.

The 4½ digit display provides a direct readout of the current pressure, peak value, tare and other functions. There is also an integrated bar graph with a trailing indicating pointer to show the trends in a working pressure system. An internal light ensures the display for the NOSHOK gauge is optimally lit for a clear readout even in unfavorable lighting conditions. The buttons on the front of the display are used for easy adjustment of the programmable functions. An integrated battery allows use away from any fixed power supply.

Applications:
