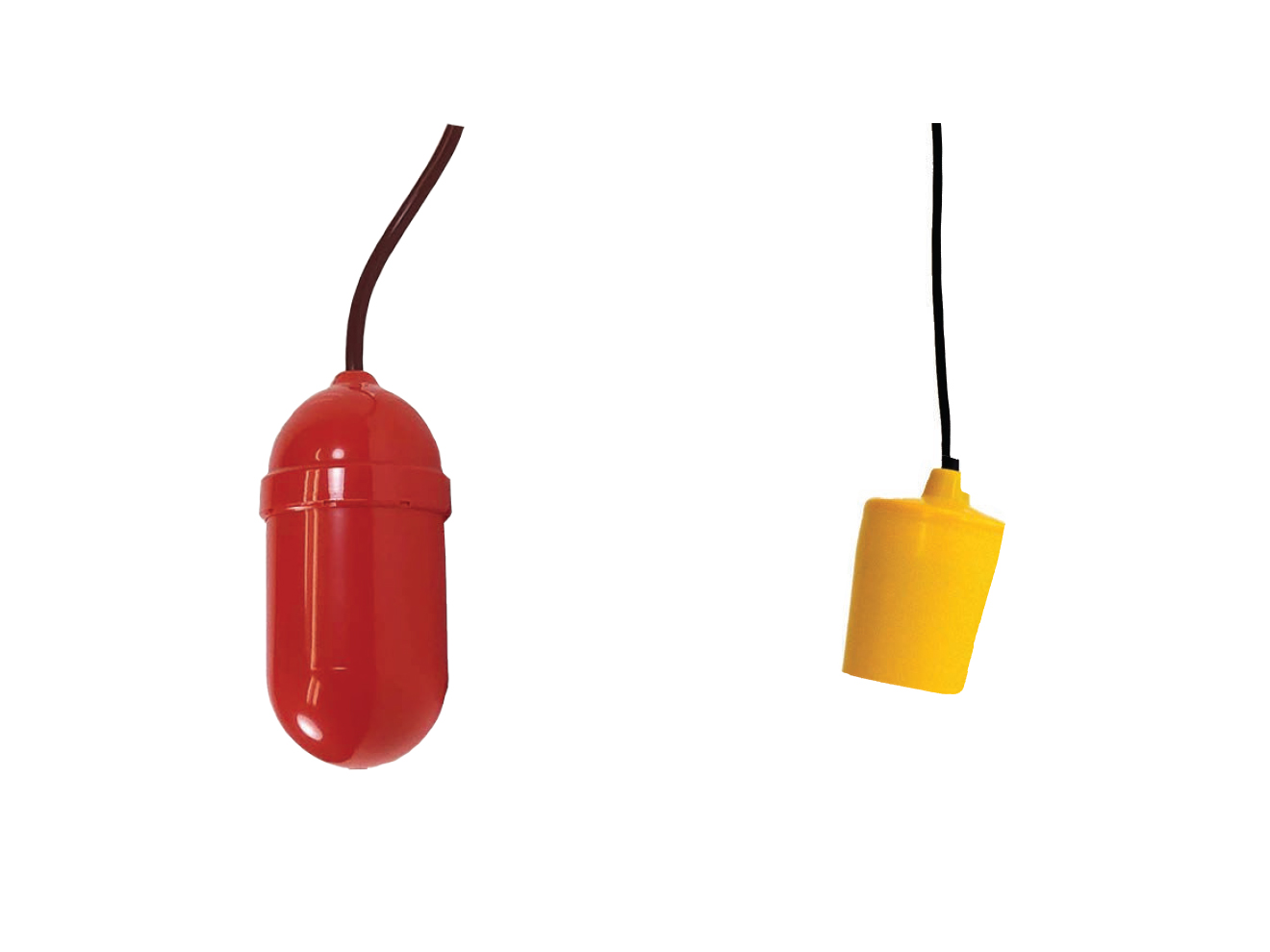

APG TLS Cable Float Switch

Dual-point liquid level switch with high chemical resistance and user-adjustable high or low operating controls. Operating temperature ranges from -10°C (14°F) up to 70°C (158°F).

Starting at $116.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • NO / NC configurations
  • Standard 6m cable length, with custom lengths up to 20m
  • Switching differential:
    • TLS-6A/B: 11 to 39in (0.27 to 1m)
    • TLS-8A/B: 13 to 157in (0.33m to 4m)
    • TLS-6-B: 28° ±2°
  • Maximum pressure: 29psi (2bar)
  • Maximum water depth / cable length:
    • TLS-6A/B: 65.6ft (20m)
    • TLS-8A/B: 65.6ft (20m)
    • TLS-6-B: 19.7ft (6m)
  • Liquid operating temperature:
    • TLS-6A/B: 14 to 122°F (-10 to 50°C)
    • TLS-8A/B: 14 to 122°F (-10 to 50°C)
    • TLS-8A/B -T: 14 to 158°F (-10 to 70°C)
    • TLS-6-B: 32 to 140ºF (0 to 60ºC)
  • Minimum specific gravity: 0.6 to 0.9
  • Material(s):
    • Housing:
      • Polypropylene, ABS resin
    • Cable: PVC Jacket
    • Cable Weight(s):
      • Painted cast iron, polypropylene
  • Voltage: 250V / 300V AC/DC max
  • High or Low Level control
  • Highly chemical resistant
  • Cable weight
  • Not sensitive to rotation
  • IP 68

The APG TLS Cable Float Switch is a dual-point liquid level switch that provides reliable level detection and control for water and wastewater applications. The cable-suspended float tracks liquid levels, with built-in hysteresis for better pump control. The switch operating levels are easily adjustable by repositioning the cable weight location along the suspension cable.

The TLS features high chemical resistance, with a material construction of polypropylene or ABS resin housing, and IP68 waterproof protection. The TLS can withstand liquid temperature ranges from -10°C up through 70°C. The durable design is built for reliable operation and is not sensitive to float rotation. Two base configurations of the unit are available: the TLS-6 with a smaller 4.2x2.8in float and 11 to 39in switching differential, and the TLS-8 with a larger 6.5x3.3in float and 13 to 157in switching differential. Both iterations have a maximum pressure rating of 29psi.

The switches can be configured for high-level alarm/empty control with a normally open circuit, or for low-level alarm/fill control with a normally closed circuit. Standard cable lengths are 6m, with custom cable lengths up to 20m available, depending on the configuration. The TLS is particularly well-suited for level monitoring and pump control in sewage lift stations, sump pits, and other wastewater applications with low specific gravities down to 0.6.
