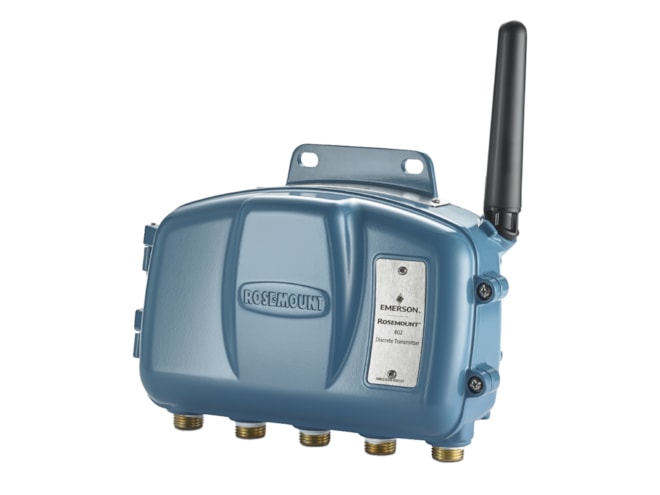

Rosemount 802 Wireless Multi Channel Discrete I/O Transmitter

WirelessHART enabled unit with 8 discrete channels configurable for input or output. Over 99% data reliability.

Starting at $5,413.32

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 8 discrete channels, each configurable as input or output
  • Discrete input:
    • Suitable for SPST dry contacts
    • Detects momentary signals as short as 10ms
    • Switching threshold:
      • Open: > 100 K Ohm
      • Closed: < 5 K Ohm
  • Discrete output:
    • Maximum rating: 28V DC, 100 mA
    • On resistance: Typical 1 Ohm
  • Integrates with all standard protocol host systems:
    • OPC, Modbus, TCP/IP, Modbus RTU, and EtherNet/IPTM
  • IEC 62591 self-organizing WirelessHART mesh network at 2.4GHz
  • Wireless update rate: user-adjustable, 1s to 60min
  • Reliable data transmission with > 99% reliability
  • Industry standard security:
    • Encryption, authentication, verification, anti-jamming, key management
  • Temperature limit(s):
    • Operating limit: -40 to +185°F (-40 to +85°C)
    • Storage limit -40 to +185°F (-40 to +85°C)
  • Multiple conduit entries and cable gland options
  • Versatile power options:
    • Up to 7 year battery life with replaceable Emerson SmartPower module
    • 10-30V DC external power input
  • Panel or pipe-mounting configurations available
  • IP66, NEMA 4x enclosure ratings
  • 3 or 5 year extended warranty options
  • Certification/approval(s): FM, CSA, IECEx

The Rosemount 802 Wireless Multi Channel Discrete I/O Transmitter is a versatile wireless transmitter with adaptable monitoring and controlling discrete signals for various application networks. The 802 integrates 8 discrete channels that can be individually configured as either an input or output, permitting the user to max and match discrete I/O in a single device. Input configured channels allows for interfacing with dry contact switches and detectors. The 802 continuously monitors the channels, capturing momentary signals as short as 10ms, and compiles state change counts between wireless transmissions. This ensures accurate and reliable data, with no missed events. Output configured channels provide direct control of low-power devices like relays and indicators. Each output channel is electrically isolated and rated for a maximum of 28V DC, 100mA.

The 802 transmits data signals through WirelessHART mesh technology operating in the 2.4GHz ISM band. The self-organizing network dynamically adjusts to overcome obstructions and interference. Advanced security features such as encryption, authentication, anti-jamming and key management protect data integrity. Power options for this unit include regulated 10-30V DC input power or a smart lithium battery module1 with up to 7 years of maintenance-free operation in standard use-cases. The power module can be easily replaced in the field without tools.

The IP66 and NEMA 4x rated aluminum enclosure and wide operating temperature range (-40 to +185°F), equips the 802 for harsh industrial environments. FM, CSA and IECEx approvals are available. This unit is built to integrate into most host systems using standard protocols such as: OPC, Modbus, TCP/IP, Modbus RTU, and EtherNet/IPTM. The flexible design features and secure wireless network make the 802 ideal for monitoring and control applications across a wide range of industries.

1. Product sold separately, please contact Instrumart for further details and pricing.
