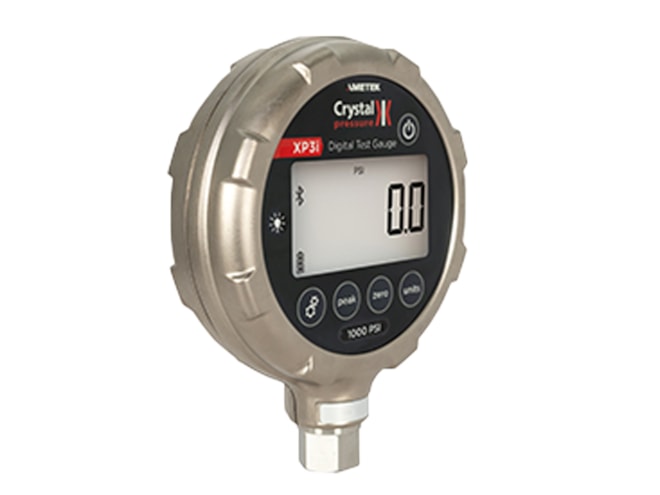

Ametek Crystal XP3i Series Digital Pressure Gauge

Name: Ametek Crystal XP3i Series Digital Pressure Gauge
Price: 1870.0 USD
Availability: InStock

Pressure gauges ranging from 15 PSI to 10,000 PSI.

Starting at $1,870.00

View Company Reviews

Manufactured

By Crystal Engineering

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (4 Files)

Features

0.05% of Reading Accuracy
-4 to 122°F Temperature Compensated
Bluetooth communication
- Connect in a hazardous environment while retaining intrinsically safe ratings
- Mount the XP3i in hard-to-reach locations and connect from a safe area
- Avoid inclement weather by connecting to the XP3i from a climate-controlled office or vehicle
Cloud based software suite
- Upload stored data from computer
- Upload stored data from a file – wirelessly downloaded using the app
- Share stored data with anybody in an organization
- Grant user access to an organization through a license key
- Graph stored data
- Customized graph details like line color, axis minimum and maximums, and run and test names
- Configurable the settings
- Download data to spreadsheets or secure, tamper-proof pdf files
USB cable
Mobile App
Replaces 5 or most test gauges
Fast pressure safety valve (PSV) mode
Simple and faster workflows
Easy to read display, day or night
5 full digits, great for leak testing
Available in ranges from 15 to 10,000 PSI
Pressure units easily accessible
Marine grade enclosure resists corrosion (MIL-STD 810)
Optional DataLogger XP upgrade:
- Record over 200 million data points
- Over an entire year of continuous recording time
- Start and stop logging runs from phone or gauge
- Download data using a USB connection and a computer or through Bluetooth and the mobile app

The Ametek Crystal XP3i Series Pressure Gauge is an ultra-rugged, intrinsically safe, digital test gauge with “0.05% of reading”, “0.02% of full scale”, or “0.05% of full scale” accuracy levels. Carry a single XP3i digital pressure gauge to cover a wide pressure range and replace multiple “of scale” gauges. If a recording of a pressure test is required, add the DataLoggerXP upgrade to open a wide range of features and functions.

Unlike mechanical gauges, the Ametek Crystal XP3i Series pressure gauge has the ability to survive large over-pressure events with no change in calibration.

The XP3i Series is very easy to use. There are no menus—just buttons. They can be calibrated via the keypad or the USB port. The display backlight is one of the best available on this type of pressure gauge. The XP3i can be automatically calibrated when combined with an XP3i with a pressure controller.

The Ametek Crystal XP3i Series is very accurate. The XP3i is rated in percent of reading - like deadweight testers - but unlike deadweight testers, they're not affected by ambient temperature or local gravity. These pressure gauges are full temperature compensated, so the accuracy is the same over the entire operating temperature range. They can even be used to measure vacuum. Because the rating is "of reading", one XP3i can often replace two or more ordinary gauges.

Spec Sheets

Hard carrying case with egg crate foam.

In Stock

$169.00

Accessories

Please consider these optional accessories.

Ametek Crystal Engineering DataLoggerXP Software

Intrinsically safe data logging solution.

In Stock

$956.00

Ametek Crystal 3696 Rubber Boot

Skydrol resistant rubber boot for maximum shock resistance.

Some Models in Stock

Starting at $64.00

Ametek Crystal MPM-1/4MPT Connector

Hand-tight Crystal adapter fittings rated to 10,000 psi, 1/4 NPT Male (CPF Male).

In Stock

$147.00

Ametek Crystal Connection Fittings

Non-Crystal MP adapters (wrench tight), fittings rated to 15,000 psi, male-to-male and male-to-female.

Some Models in Stock

Starting at $169.00

Ametek Crystal 3313 Adapter

Adapter USB B receptacle to RS232 DB9M.

In Stock

$176.00

Part Number	Price	Available
XP3I-5KPSI Show Configuration	$1,870.00	2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
