Optris Xi 1M Infrared Camera

396x300 pixel resolution, 450 to 1800°C temperature range, and <2K (<900 °C) or <4K (<1400°C) thermal sensitivity. Short wavelength measurement in compact, Ethernet enabled design.

Starting at $3,700.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Family
Product Manual Product Specs

Features

  • Optical resolution:
    • 396 x 300 pixels with Ethernet
    • 132 x 100 pixels with USB/autonomous
  • Temperature range: 450 to 1800°C (842 to 3272°F) (without subranges)
  • Thermal sensitivity (NETD): <2K (<900°C) or <4K (<1400°C)
  • Detector: CMOS (15µm pitch)
  • Spectral range: 0.85 to 1.1µm
  • Frame rate: 20Hz
  • Optics (FOV):
    • 28° x 21° (f = 12mm)
    • 14° x 10° (f = 25mm)
    • 7° x 5° (f = 50mm)
  • Motorized focus
  • Accuracy:
    • For object temperature < 1400°C: ±1 % of reading
    • For object temperature < 1600 °C: ±2 % of reading
  • PC interface: Fast Ethernet / USB 2.0 / RS485
  • Direct I/O:
    • 1x analog output (0/4-20 mA)
    • 1x input (analog or digital); electrically isolated
  • Ambient temperature range: 5 to 50°C
  • Tripod mount: 1/4-20 UNC
  • Power supply: 8 - 30V DC / PoE / USB connection
  • Certifications/approvals: IP67, NEMA 4, CE, UKCA, RoHS, IEC 60068-2-17/6/64

What's in the Box

  • Xi 1M Infrared Camera

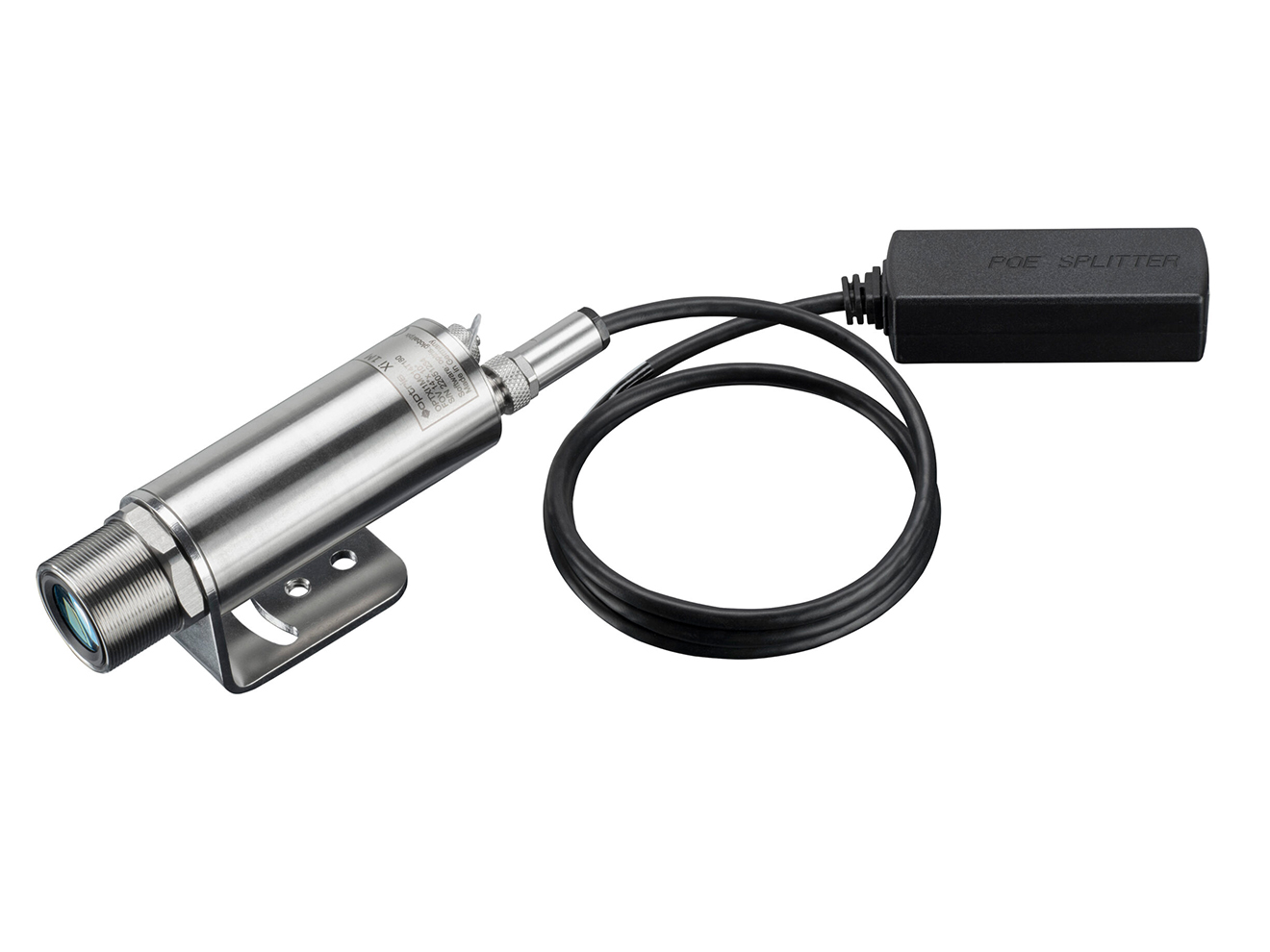

  • Ethernet/PoE cable (1m) / USB cable (1m) (additional cable lengths available up to 20m upon request)
  • I/O cable including terminal block (1m)
  • Mounting bracket with tripod thread, mounting nut
  • PIX Connect Thermography Software package (compatible with Windows 7 through 11)
  • Quick Start Guide

The Optris Xi 1M Infrared Camera is a non-contact thermal imaging unit with a CMOS detector of 396 x 300 pixel resolution (with Ethernet), and a measurement range of 450 to 1800°C (lens with f = 50mm start at 525°C). Thermal sensitivity is <2K under 900°C, <4K under 1400°C. The lens comes in optic configurations of 7°x5°, 14°x10° or 28°x21°, with focal length options of 12 to 50mm.

The autonomous operation with motorized focus and auto hot spot finder allow the Xi 1M to provide accurate, consistent readings and adaptability in various industrial environments. Versatile interface options include Ethernet, USB, and analog or digital I/O. Extensive analysis of results, alarm setting, and download of configuration files over the internet is facilitated via free access to the PIX Connect Thermography Software package.

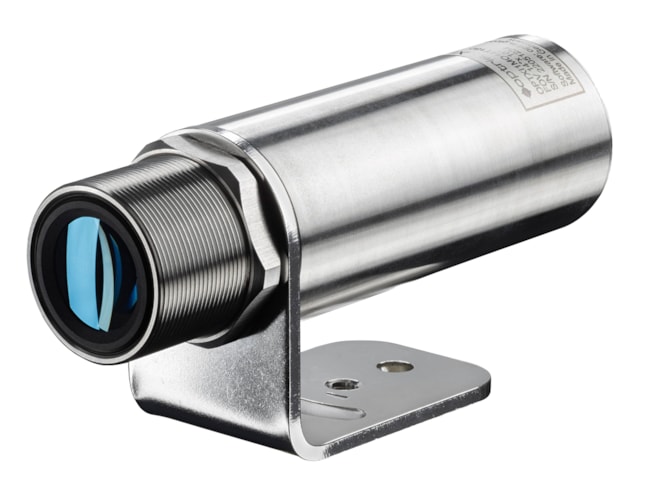

The Xi 1M is housed within a compact, IP67 (NEMA 4) rated stainless steel enclosure with shock and vibration protections, making it well equipped for non-contact thermal imaging of challenging objects such as hot and/or molten metals, semiconductors and more.

This unit is also compatible with the following Optris products:

  • IRmobile App: Integrate your unit with an Android smartphone or tablet.
  • DewesoftX: Data acquisition and signal processing software.
Contact Instrumart for further details and pricing on these optional software packages.
