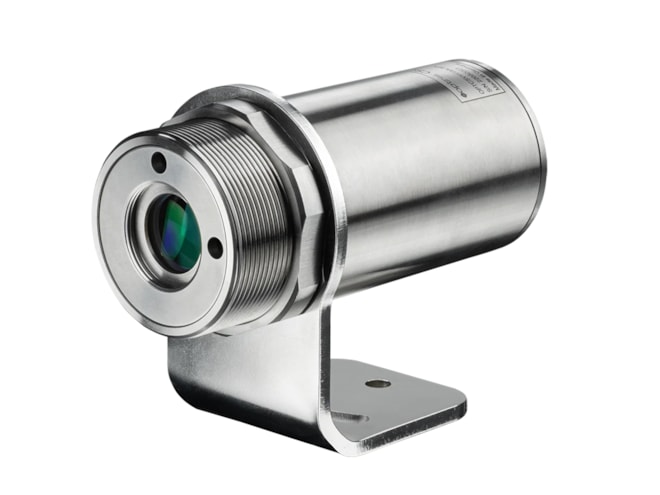

Optris CSVision R2M Ratio Pyrometer

75:1 optics, 250 to 1400°C measuring range and 0.1K thermal resolution. Motorized focus, slope adaption, crosshair laser and video sighting for measurement alignment.

Starting at $3,750.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • Optics: 75:1
  • Thermal resolution: 0.1K
  • Temperature range(s):
    • 1 channel: 250 to 1400°C
    • 2 channel: 300 to 1400°C
  • Spectral range: 1.35 to 1.75μm
  • Accuracy: ±0.5% of reading + 2°C
  • Response time: 1ms to 10s
  • Emissivity: 0.05 to 1.1
  • Slope: 0.7 to 1.3
  • Motorized focus: 350mm to infinity
  • Aiming laser: 635nm / <1mW / ON/OFF via software
  • Digital interface: USB, optional RS485 / Modbus RTU
  • Outputs: 2x 0/4 to 20mA
  • I/O-Pin(programmable):
    • Alarm output
    • Input for triggered signal/peak hold function
    • Analog input for external emissivity/slope adjustment
  • Certifications/approvals: IP65, NEMA 4, IEC 60068-2-27/6/64

    • What's in the Box

    • CSvision R2M Pyrometer
    • Mounting bracket and nut
    • USB cable (USB-C, 1.5m, USB-A adapter)
    • 7-pin connection cable with terminal block (3m)
    • USB stick with CompactPlus Connect Software
    • Operators manual

    The Optris CSVision R2M Ratio Pyrometer is a compact and durable design built for noncontact thermal imaging. Optical resolution on this sensor is 75:1, with 1 to 2 channel measurement ranges from 250 up to 1400°C, a 8° x 6° field of view, and 0.1K thermal resolution.

    Features of the CSVision R2M include 1 vs 2 color measuring modes, ideal for unobstructed vs obstructed measuring respectively. An inbuilt crosshair laser and video sighting allows for easy alignment in various conditions, and the 2-level brightness reduction component improves visibility of bright and/or reflective objects being measured. The CSVision R2M integrates Smart Ratio Mode technology which allows for quick and accurate slope adaption, with a response time as little as 1ms.

    Process data and sensor adjustments can all be accessed in real-time through the standard-issued CompactPlus Connect Software package, or through the IRmobile Android app. This unit is housed in an IP65 (NEMA 4) rated stainless steel enclosure, with shock and vibration protections. The sensor is usable in ambient temperatures of up to 60°C (140°F) without the need for cooling.
