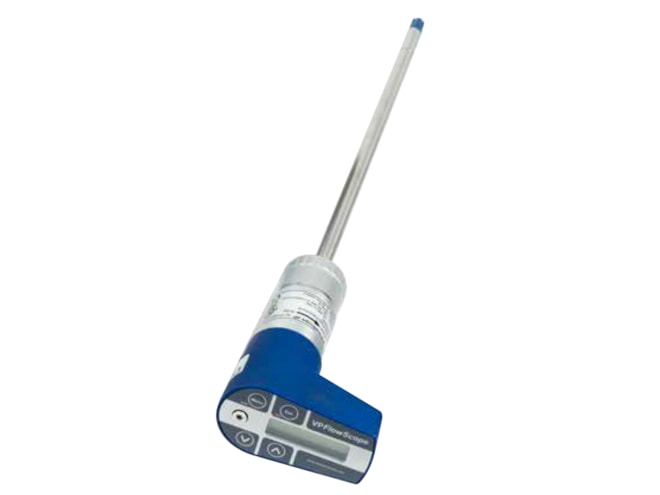

VPInstruments VPFlowScope Probe Flow Meter
4-in-1 compressed air flow sensor and exchangeable sensor cartridge, with optional start kit for dry air and non-condensed gas applications.
Overview
Features
- Flow range: 0 to 500sfps
- Pressure range: 0 to 250psi
- Temperature range: 0 to 140°F
- Air, nitrogen, oxygen, vacuum gas types
- Probe length: 15.4in/400mm
- Pipe size(s): 2 to 20in pipe size
- Optional:
- Three line Local LCD Display
- Rugged transport case
- Datalogger > 2 million data points
- VPFlow Terminal > additional four analog inputs
- VPInstruments Software & Firmware downloads page
What's in the Box
- Calibration report
- Compression Fitting
- Safety Cable
- VPStudio software (free download)
- Explorer Case (Start Kits, not included in .VPT.KIT)
- VPFlowScope JB5 interface kit (Start Kits, not included in .VPT.KIT)
Description
The VPInstruments VPFlowScope Probe Flow Meter measures mass flow, temperature, and pressure simultaneously. This probe can handle various diameters and measures in both directions. The optional three line LCD display provides real-time information on flow, pressure and temperature readings. In combination with with an inbuilt datalogger, the user can easily document and analyze data as frequent as every second for up to a week continuously.
Documents
Accessories
Replacement Parts
Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
Accessories
Please consider these optional accessories.
Applications
This product can be used in the following applications:
