VPInstruments VPFlowScope DP Flow Meter

Differential pressure sensor with optional start kit designed for hot, saturated compressed air flow measurements.

VPInstruments VPFlowScope DP Flow Meter — VPInstruments VPFlowScope DP Flow Meter - with display

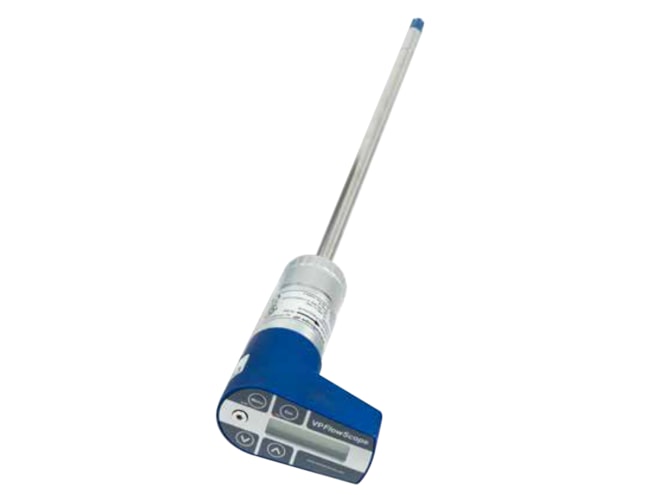

VPInstruments VPFlowScope DP Flow Meter - with display
VPInstruments VPFlowScope DP Flow Meter - with connector cap

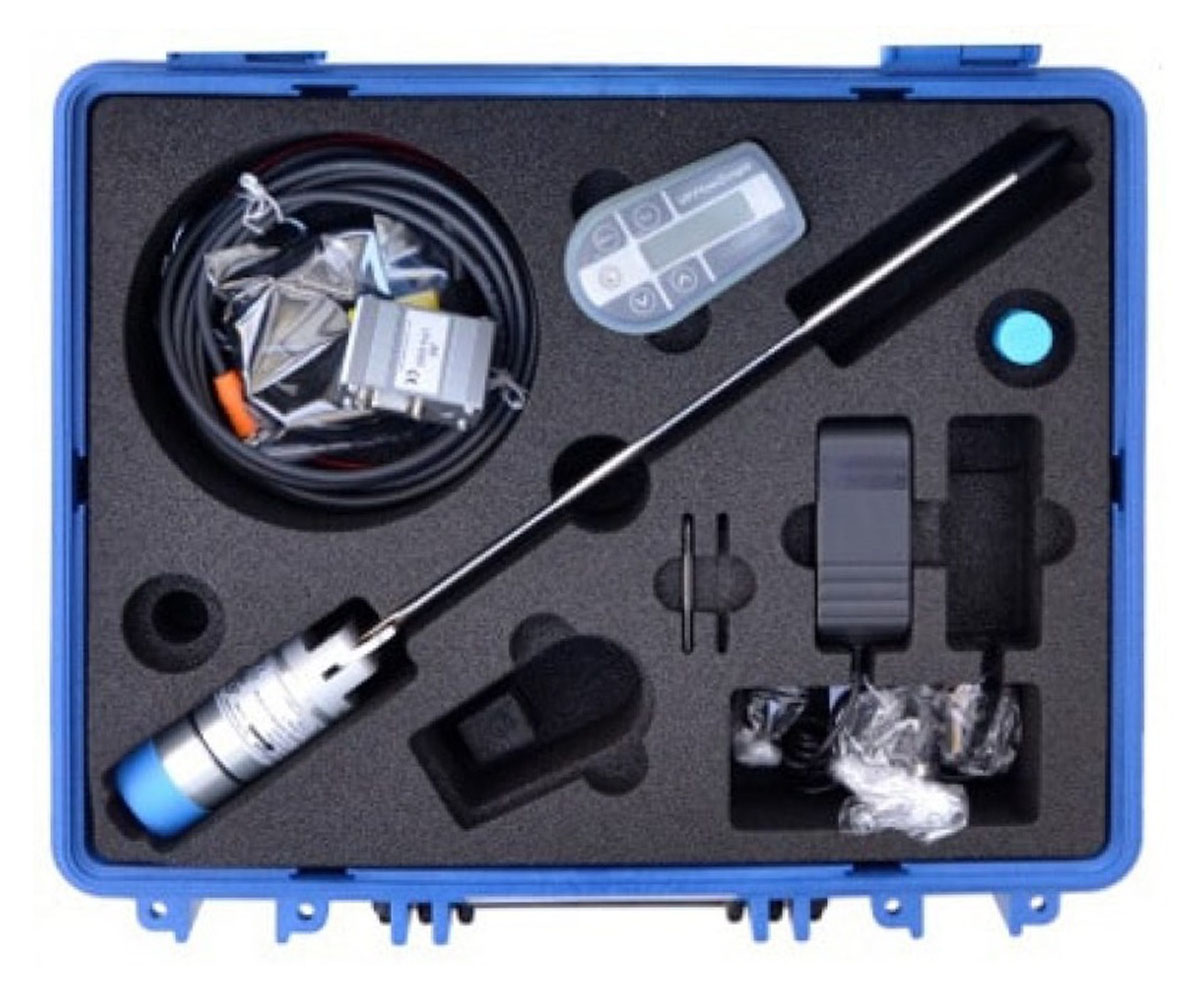

VPInstruments VPFlowScope DP Flow Meter Start Kit

Starting at $3,862.00

View Company Reviews

Manufactured

By VPInstruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Flow rate: 65 to 650sfps
Pressure range: 0 to 250psig
Pip size(s): 2 to 20in
Temperature range: -40 to 302°F
Outputs:
- RS485 (Modbus RTU) digital
- 4-20mA analog
Probe length: 15.4in/400mm
Optional:
- Three line Local LCD Display
- Rugged transport case
- Datalogger > 2 million data points
- VPFlow Terminal > additional four analog inputs
VPInstruments Software & Firmware downloads page

What's in the Box

Calibration report
Compression Fitting
Safety Cable
VPStudio software (free download)
Explorer Case (Start Kits, not included in .VPT.KIT)
VPFlowScope JB5 interface kit (Start Kits, not included in .VPT.KIT)

The VPInstruments VPFlowScope DP Flow Meter measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has an optional three line LCD display that provides real-time information on flow, pressure and temperature readings. In combination with with an inbuilt datalogger, the user can easily document and analyze data as frequent as every second for up to a week continuously.

Spec Sheets

VPInstruments VPFlowScope DP Flow Meter Datasheet (923 KB)

Manuals

VPInstruments VPFlowScope DP Flow Meter Manual (1022 KB)

Links

All possible part numbers

Replacement Parts

VPInstruments VPFlowScope DP Replacement Sensor Module

VPInstruments VPFlowScope DP Replacement Sensor Module

Exchangeable differential pressor sensor for the VPFlowScope DP Flow Meter.

VPInstruments VPFlowScope Connector Cap

VPInstruments VPFlowScope Connector Cap

Replacement connector cap for VPFlowScope probes and VPFlowTerminal Kits.

Starting at $185.00

Accessories

Please consider these optional accessories.

VPInstruments VPFlowScope JB5 Interface Kit

VPInstruments VPFlowScope JB5 Interface Kit

Includes 16.4ft cable USB to RS485 converter and power supply for JB5.

VPInstruments Display and Sensor Power Supply

VPInstruments Display and Sensor Power Supply

110-240VAC to 24VDC power supply for flow meters with display.

VPInstruments VPFlowScope Sensor Cable

VPInstruments VPFlowScope Sensor Cable

5 pin M12 connector on one end, open wires for 0V, 24V, RS485 A, RS485 B and Analog output on the other end.

Some Models in Stock

Starting at $36.00

VPInstruments VPFlowScope IP65 Power Supply Module

VPInstruments VPFlowScope IP65 Power Supply Module

Power supply module in IP65 enclosure (230-110VAC to 24VDC) for permanent installation. Can power up to 2 VPFlowScopes.

VPInstruments Gas Correction Factor Factory Service

VPInstruments Gas Correction Factor Factory Service

Factory programmed gas correction factor for +/-5% accuracy for common industrial gases.

Starting at $124.00

This product can be used in the following applications:

Compressed Air
