SensoScientific RTD Temperature Probe

Measuring ranges from -200 to 200°C with waterproof flat-wire cable up to 50ft in length and M8 connector. Thermal buffer compatible.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability

Features

  • Temperature range(s):
    • -C: -200°C to 80°C
    • -L: -80°C to 50°C
    • -F -40 to 70°C (ambient with 2in cable)
    • -H: 20 to 200°C
  • Accuracy: ±0.5°C
  • Material: 504 Stainless Steel
  • Waterproof flat-wire cable
    • 2in to 50ft (15.24m) lengths available depending on configuration
  • Dimensions:
    • Height: 3.6in (91.5mm)
    • Diameter: 0.28in (7mm)
  • Calibration points:
    • -C: -70 and -10°C
    • -L: -50 and -10°C
    • -F: -10 and 35°C
    • -H: 35 and 50°C
  • Compatible with thermal buffer
  • Certification(s): NIST traceable, A2LA (accredited)
    • digital certificates accessible via SensoScientific Cloud services

What's in the Box

  • RTD Temperature Probe
  • Waterproof flat-wire cable (up to 50ft)
  • M8 connector with metal fastener

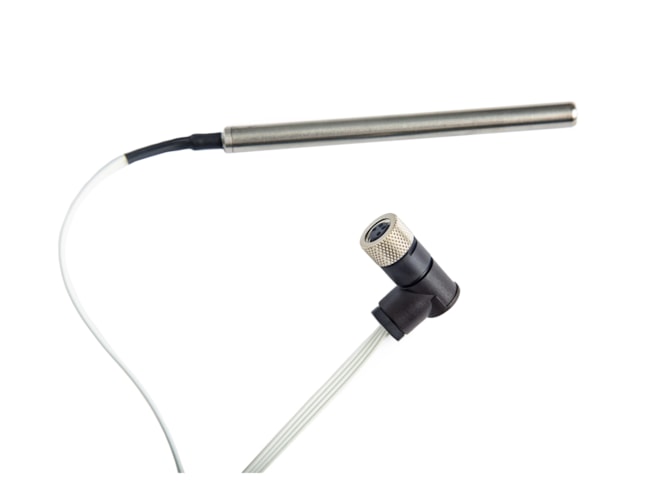

The SensoScientific RTD Temperature Probe is constructed with 504 stainless steel, with waterproof cabling up to 50 feet in length for an efficient and adaptable installation process. An industrial grade M8 connector and metal fastener easily integrates the probe with any SensoScientific device. When connected with WIFI-enabled nodes, measurements can be transmitted to the SensoScientific Cloud 1 platform for real-time analysis. This unit is compatible with both solid and liquid thermal buffers, meeting required CDC standards. Each unit is NIST traceable, with optional A2LA accredited calibration from SensoScientific's laboratory2. Digital certificates are accessible via Cloud services.

1. Cloud platform access is sold separately as a required component for the SensoScientific OTA Series Data Logger
2. Calibration service options are sold separately as a required component (see Accessories tab).

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

SensoScientific Probe Calibration Service
SensoScientific Probe Calibration Service

2-point NIST traceable with custom calibration points, with additional A2LA in-house laboratory certification available.

Select options for pricing
