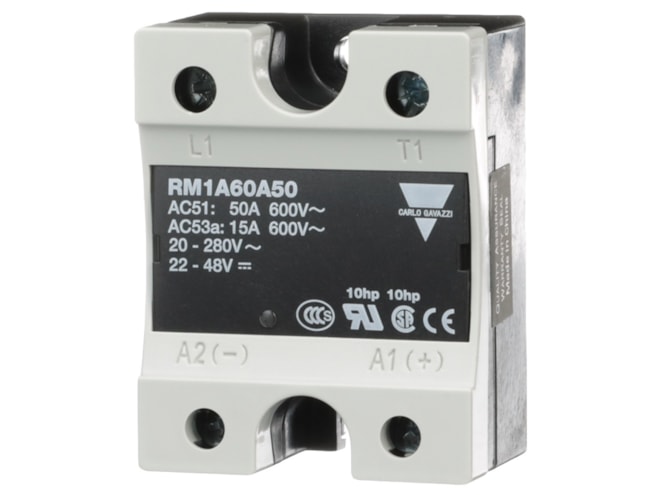

Carlo Gavazzi RM1A/B Series Solid State Relay

Name: Carlo Gavazzi RM1A/B Series Solid State Relay
Price: 58.0 USD
Availability: InStock

Industrial, 1-phase solid state relays with LED and built-in varistor.

Starting at $58.00

View Company Reviews

Manufactured

By Carlo Gavazzi

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

Zero or instant-on switching AC Solid State Relay
Direct copper bonding (DCB) technology
LED indication
Built-in varistor 230, 400, 480, 600 V
Clip-on IP 20 protection cover
Self-lifting terminals
Housing free of moulding mass
3 input ranges: 3 or 4-32* VDC and 20-280 VAC/22-48 VDC, & low voltage 5-24 VDC/AC
Operational ratings up to 100 AACrms and 600 VAC
Non-repetitive voltage: Up to 1400 Vp
Opto-insulation: > 4000 VACrms

The 1-phase Carlo Gavazzi RM1A and RM1B Solid State Relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The Carlo Gavazzi RM1A and RM1B Solid State Relay can be used for resistive, inductive, and capacitive loads.

The Carlo Gavazzi RM1A and RM1B Solid State Relay's zero switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The Carlo Gavazzi RM1A and RM1B Solid State Relay features a built-in varistor to secure transient protection for the heavy industrial applications and an LED to indicate the status of the control input. The clip on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm².

Spec Sheets

Manuals

Carlo Gavazzi RM1A/B Series Manual PDF (1.5 MB)

Links

All possible part numbers

Carlo Gavazzi Thermal Interface

Pre-cut thermal pad or silicone based thermal paste for use with solid state relays.

Starting at $2.00

Part Number	Price	Available
RM1A48A25 Show Configuration	$75.00	75 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 22 weeks". Click here to select options
