Megger TTRU1 Handheld Transformer Turns Ratiometer

Polarity validation and turns ratio tests on power, distribution, and instrument transformers.

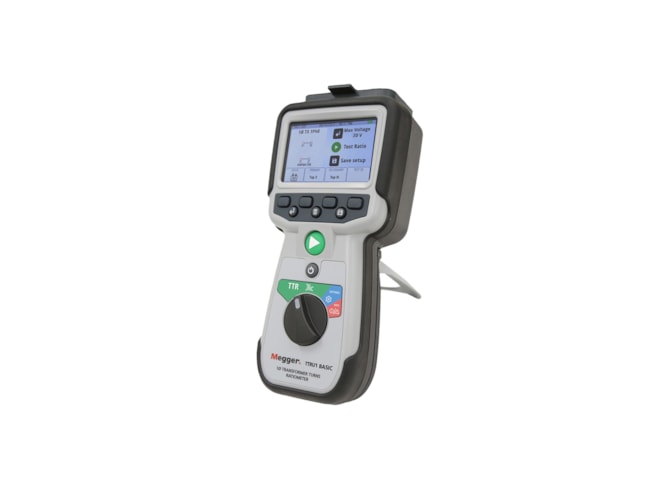

Megger TTRU1 Basic Handheld Transformer Turns Ratiometer
Megger TTRU1 Advanced Handheld Transformer Turns Ratiometer

Starting at $4,310.00 Found a better price? Let us match.

View Company Reviews

Manufactured

By Megger

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 5-7 business days

Product Manual Product Specs

Features

Automatic results storage
Microsoft Excel export
TTR Up to 62.5 V AC
±0.05% accuracy
Additive/subtractive polarity direction
Excitation current
Auto screen dimming and power off
Pass/fail ratio evaluation
Instrument self-check
USB drive save and export
Belt loop carry bag
Battery operated with USB-C Rechargeable AA NiMH batteries included
Advanced Model features
- Power DB Import
- Customizable transformer vector list and voltages
- Guided three phase transformer tests
- Go/No Go short circuit impedance, open circuit, impedance

The Megger TTRU1 Handheld Transformer Turns Ratiometer performs routine polarity validation and turns ratio tests on power, distribution, and instrument transformers guided by color coded leads, clamps, and customizable on-screen vectors that match the transformer nameplate under test. In addition to turns ratio tests, the TTRU1 adds go/no-go short circuit, open circuit, and inductance test capabilities. Perform up to 1000 TTR tests on a single charge with AA NiMH batteries installed from the factory that can be charged with a USB-C cable.

The TTRU1 Basic is designed to test distribution, instrument (CTs and PT/VTs), and power transformers. With minimal user input, the TTRU1 delivers the required AC voltage and current to obtain accurate results. The TTRU1 Advance model's configurable vector list saves information for transformers routinely tested, simplifying selection of common transformer configurations and results interpretation. When exported, results are grouped by file name, creating an XLSX/PDF report that is easy to read, email, or import into PowerDB.
