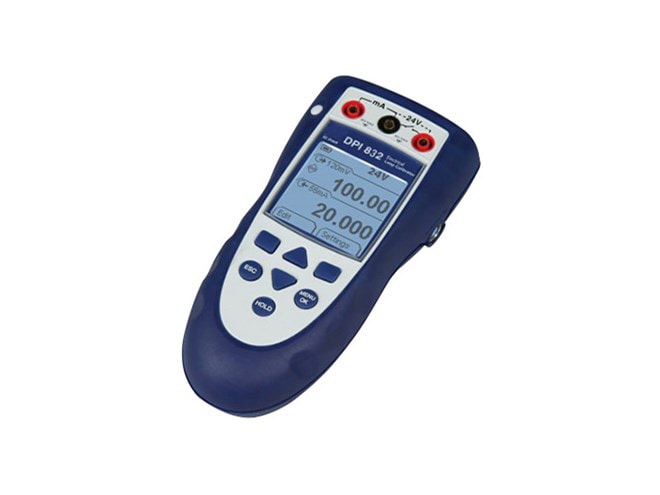

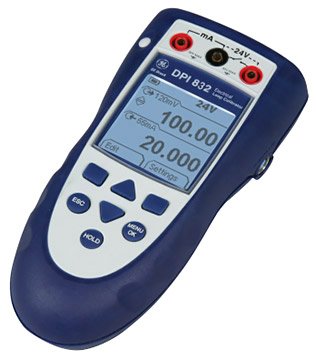

Druck DPI 832 Electrical Loop Calibrator

Electrical loop calibrator for instrumentation test and loop maintenance.

Retired products cannot be ordered

The Druck DPI 880 Multi-Function Calibrator is the suggested replacement

View Company Reviews

Part Number

DPI832

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs (2 Files)

Features

Dual reading capability: source mA, mV, or V and simultaneously measure mA or capture switch trip values
Measure or source mA, mV, and V
24V loop supply to power transmitters and loops
Large backlit display, menu driven interface
HART loop resistor
Robust and weatherproof
Compact, simple to use, easy to carry
Convenient, one-handed operation
Secure grip, impact resistant, elastomer protected
Plug / play connector for Intelligent Digital Output Sensor (IDOS) Universal Measurement Modules

The Druck DPI 832 electrical loop calibrator is a lightweight and convenient hand-held instrument for testing control loops and for setting up distributed control systems (DCS), programmable logic controllers (PLCs), and signal conditioners in process and industrial control systems.

The multifunctional GEDruck DPI 832 electrical loop calibrator provides the ability to source and measure millivolts, milliamps, or volts while simultaneously measuring milliamps or capturing switch trip values. With dual reading capability and a large display, the Druck DPI 832 electrical loop calibrator is the ideal solution for process technicians to check and maintain transmitters, control loops, DCS, PLC input cards, and signal conditioners.

Every Druck DPI 832 electrical loop calibrator has an IDOS (Intelligent Digital Output Sensor) compatible port for connecting remote IDOS measurement modules. For example, a Druck DPI 832 electrical loop calibrator can become a fully functional pressure calibrator by adding a universal pressure module. IDOS measurement modules are interchangeable between any IDOS compatible instruments without calibration or set-up. They are true "plug and play" modules.

Applications for the Druck DPI 832 Electrical Loop Calibrators

Process instrument test and maintenance
Control loop setup and diagnostics
Set-up DCS, PLC, and signal conditioners
Valve positioner adjustment

In addition, Druck DPI 832 electrical loop calibrators have multiple advanced features to increase their versatility and reliability:

Advanced Features: Hold, maximum/minimum/average (with time stamp), scaling, tare (offset), and damping filter facilitate system checks and troubleshooting.
Programmable Step and Ramp Outputs: Simplify calibrations and facilitate system diagnostic checks. The ramp output provides a stimulus for rate of change indicators.
Adjustable "Nudge" Value: Provides an incremental output for accurately setting valve positioners and testing switches, relays, trips and alarms.
Simultaneous Dual Readings: Simplify transmitter set-up and calibration; for example, source mV, V, or mA and measure mA.
Two Independent 24 V Power Supplies: Energize transmitters and control loops.
Automatic Switch Test: Captures open/closed trip values providing a fast and highly accurate "safety system" check.
HART Resistor: Can be switched into the loop when required for a HART digital communicator and avoids the inconvenience of carrying a 250Ω resistor.
