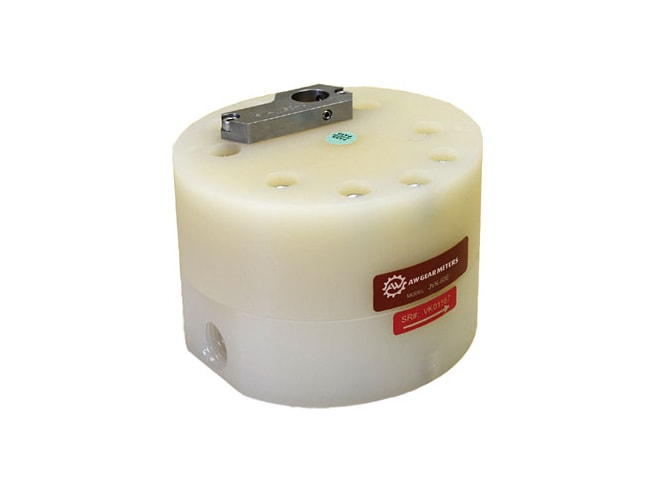

AW-Lake JVK Series Positive Displacement Flow Meter

Name: AW-Lake JVK Series Positive Displacement Flow Meter
Price: 3336.0 USD
Availability: InStock

Positive displacement flow meter with Kynar body for acid and caustic chemicals.

Starting at $3,336.00

Effective April 8th, 2025 AW-Lake has added a surcharge to this product. A 9% surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By AW-Lake

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks. Call for expedite options

Product Manual Product Specs

Features

0.1 to 7 GPM
Compatabile with acid and caustic fluids
Accuracy ± 1.0% of reading
Thermoplastic Construction
Pressure rating up to 500 PSI
Pulse, mA and Voltage Sensors available
Economical cost
Bi-directional flow capabilities

The AW-Lake JVK Series positive displacement flow meter economically and reliably meets the harsh demands of the chemical dispensing market. The materials of construction, including a Kynar body and AL₂O₃ bearings, are designed to provide years of service when used with the strongest chemicals including acid and caustic based fluids.

The AW-Lake JVK Series positive displacement flow meter features a non-intrusive sensor that detects the movement of the gears and produces a square-wave pulse for each gear tooth. This high resolution pulse train is proportional to the actual flow rate and provides a highly accurate representation of the fluid flow. The positive displacement principle is able to retain accuracy in conditions of changing viscosity and temperature and, for this reason, is superior to turbine flow meters in chemical dispensing applications.

Specifications of the AW-Lake JVK Series Positive Displacement Flow Meter

Body: Kynar ® (PVDF)

Gear: Teflon ® (PTFE)

O-Ring: Teflon ®(PTFE)

Shafts: Ceramic (AI₂O₃)

Repeatability: ±0.2%

Temperature: 110°F

Porting: Female NPT

Sensors: Pulse output standard
