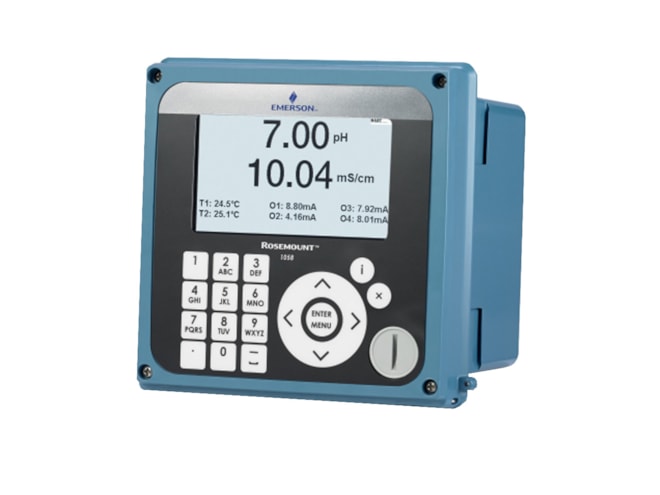

Rosemount 1058 Dual Channel Transmitter
Multi-parameter Liquid Analysis transmitter for digital and analog sensors. Suitable for a wide array of industrial, municipal, and commercial applications.
Overview
Features
- 4-20 mA or 0-20 isolated current outputs and HART digital signal
- 550 Ohms max load
- 0.05 mA (0.3125% of span) at 25 °C analog output accuracy
- Less than 0.03 mA drift per 10 °C (+/-0.1875% of span per 10 °C) temperature effect
- Four alarm relay outputs for process measurement or temperature
- Form C, SPDT, epoxy sealed relays
- 5.0 A maximum relay current
- 1⁄8 HP motor (maximum) at 115/230 Vac inductive load
- 24-12 American Wire Gauge (AWG) power
- 26-16 AWG signal board
- 24-12 AWG alarm relays
- 26-16 AWG current outputs
- 14 to 140 °F Temperature
- 32 to 131 °F Turbidity Temperature
- Type 4X, IP66
Description
The Rosemount 1058 Dual Channel Transmitter provides confident liquid analysis measurement in a wide range of
industrial, municipal, and commercial applications. Supports continuous measurement of liquid analysis from one or two sensors. Each sensor channel is independently configurable to support a wide selection of digital or analog liquid analysis sensors including pH, ORP, conductivity, dissolved oxygen, chlorine, turbidity, and more. IP66/Type 4X rated engineered polymer enclosure with universal mounting options provides confident and easy installation indoors or outdoors.
Ready to connect technology allows digital sensors to be connected and configured under 10 seconds. Large color LCD screen with intuitive menus and alpha-numeric keypad enable easy configuration and calibration.
Continually monitors both itself and connected sensors and provides a wide range of sensor diagnostic information
as well as detailed fault and warning info. Predictive pH sensor health diagnostics let you know when your pH sensor is nearing the end of its life.
