GF Signet U1000 UltraFlow Ultrasonic Flowmeter/Heatmeter with Wall Mounted Head Unit
Clamp-on heatmeter/flowmeter with wall mounted head unit and digital communication.
Overview
Features
- Flow range: 0.1 to 10 m/s, bi directional
- ±3% accuracy
- ±0.5% of measured value repeatability
- <500 ms response time
- LCD display
- Fixed clamp-on sensor
Description

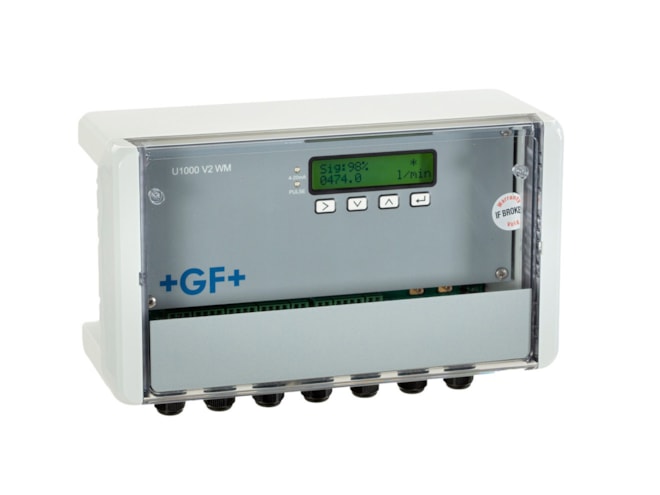

The GF Signet U1000 V2 Wallmount (WM) is a permanent ultrasonic clamp-on flowmetering solution with wallmounted head unit. This cost effective device can either be used as a stand-alone meter or as an integral part of a control loop.
The U1000 V2 Wallmount Heatmeter (WHM) is an ultrasonic permanent Clamp-On heatmeter / energy meter / BTU meter. Additionally to an ultrasonic flowmeter it is equipped with Pt100 temperature sensors to calculate the energy of a heat exchanging system.
The U1000 V2 WM (WHM) is very simple to install – clamp it on to the pipe, connect it to power and enter the pipe diameter. No expertise or special tools are required.
The "Clamp-On" concept makes the installation of the sensors in running systems possible. The pipe does not have to be opened. Compact, robust and reliable – the type U1000 V2 WM (WHM) was designed for long-term use in industrial applications.
The U1000 V2 WM (WHM) is especially configured for pure water and can be used on PVDF-ABS, PVC, PP, PE, PB-Instaflex, iron and steel pipes. Processes can be monitored directly by a higher-level system via 4 to 20 mA, Modbus, pulse or frequency output.
Applications:
- Ultrapure water measurement
- Flow measurement for heat metering
- Chilled water metering
- Flow measurement for energy metering
- Monitoring of manufacturing processes
- Water/glycol measurement
