CDI Meters 5400 Compressed Air Flow Meter

Single ring flow meter for compressed air and nitrogen, 50mm through 8in nominal pipe sizes available.

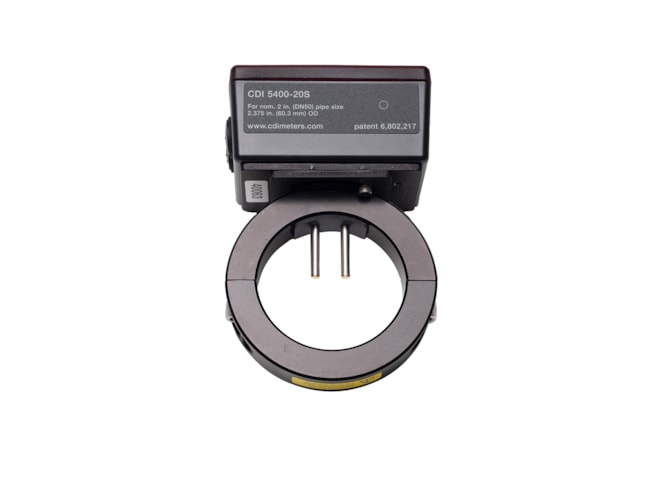

CDI Meters 5400-20S Compressed Air Flow Meter - Front View

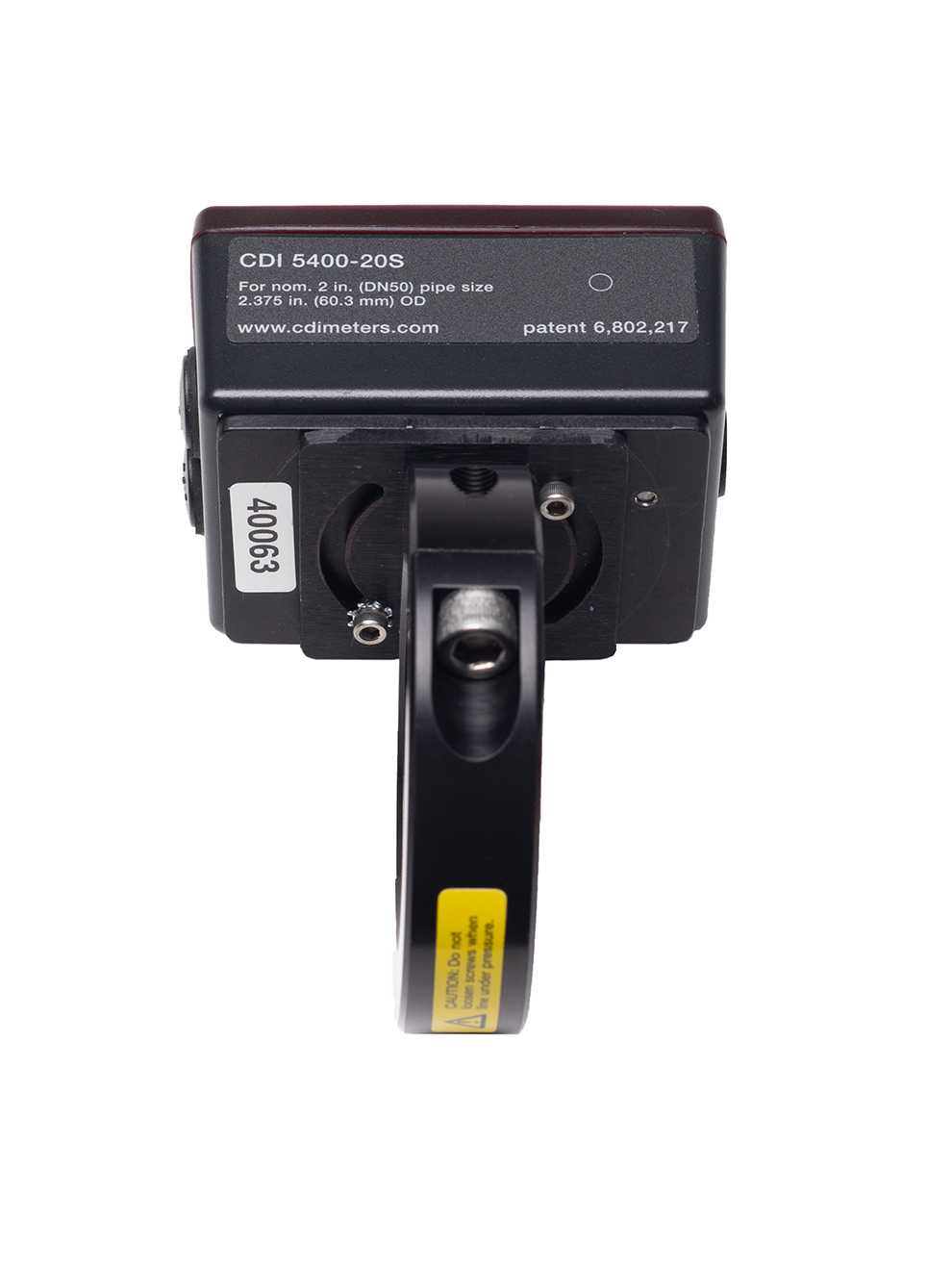

CDI Meters 5400-20S Compressed Air Flow Meter - Side View

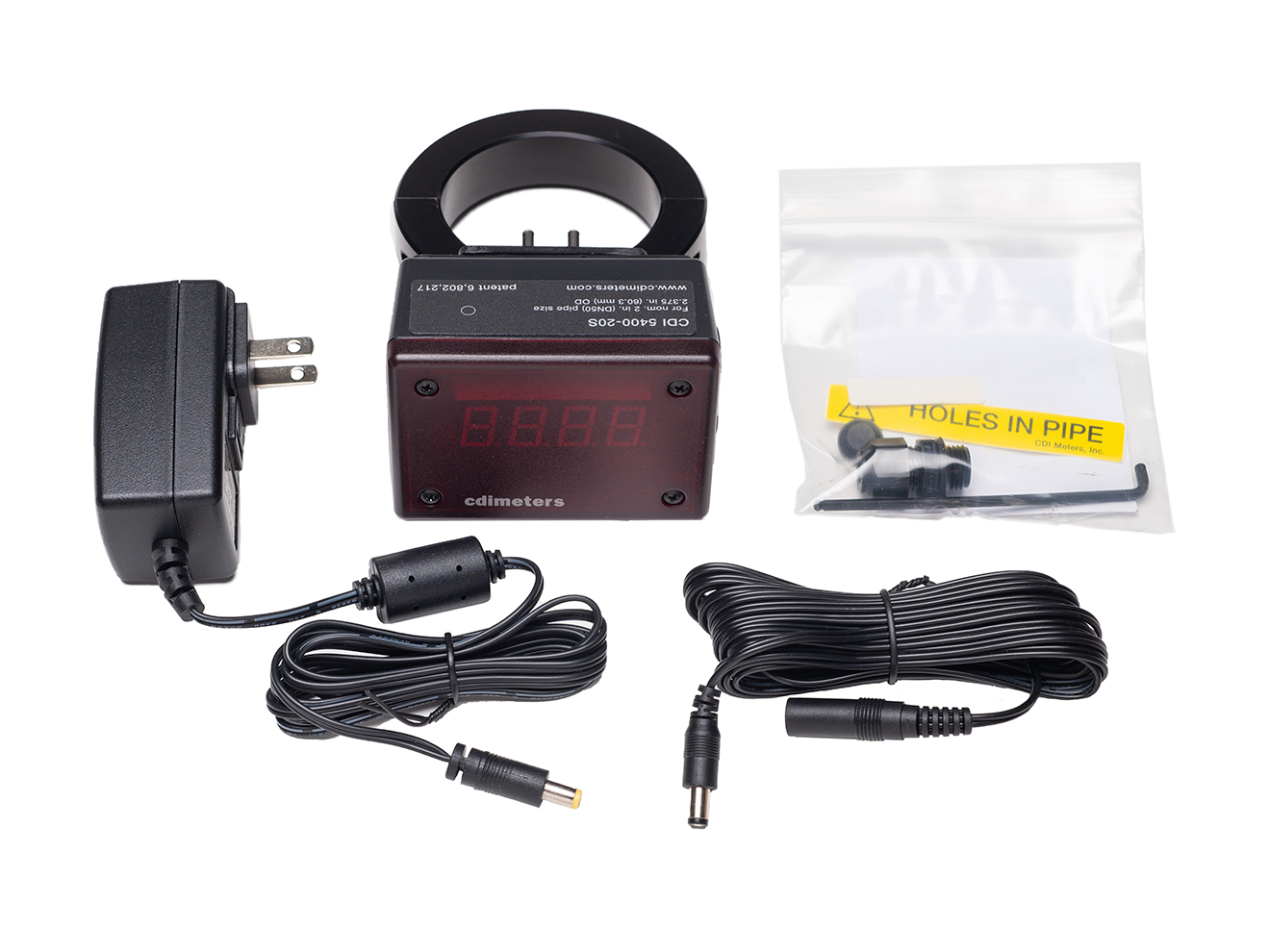

CDI Meters 5400 Compressed Air Flow Meter - Box Contents

Starting at $795.00

View Company Reviews

Manufactured

By CDI Meters

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 business days

Product Manual Product Specs (2 Files)

Features

Accuracy: 5% of reading
Temperature Compensation Range: 20 to 120°F (-7 to 49°C)
Fluids: Compressed air and nitrogen
Nominal Sizes: 50mm to 8in
Operating pressure: 200psig maximum
Input power: 250 mA at 24 VDC
Output resistance: 600 Ohms max.
Materials: stainless steel, gold, thermal epoxy and Viton (seal)
Ring material: Aluminum
Convertible pulse/threshold output available
Four-digit LED display
Quick response time
RS-485 output available
Pressure sensing available

What's in the Box

CDI 5400 Flow Meter
Wall-plug DC supply for 110 to 230V AC main with 6ft cable
14ft extension cable
Installation Kit: gland seal with gasket, power plug, "Caution" label, "Holes in Pipe" label

The CDI Meters 5400 Compressed Air Flow Meter features a thermal mass design, gauging the flow rate of compressed air and nitrogen via the heat required to maintain the differential between its probes. The CDI 5400 is built to operate accurately up to 200psig, with a clamp-design that projects two probes within the selected piping through 3/16in drilled holes, streamlining the installation process (no welding required).

Weather resistant materials and inbuilt surge protection mean low maintenance and reduced labor. In addition to an easy to read LED display, the CDI 5400 offers streamlined navigation. The user is able to utilize a single button on the front of the meter to alternate between rate, daily usage and cumulative usage, as well as select a default display option, change units of measurement, and reset totals. The CDI 5400 has an optional eight banks of memory for continuous logging of flow history, with a one million+ sample capacity per bank. Optional RS-485 output for networking is also available.

The CDI 5400 comes with a wall-plug DC supply for 110 to 230V AC main with a 6ft cable plus a 14ft extension cable. Alternatively the user can hardwire the meter to a 24VDC supply. The CDI 5400 features an inbuilt milliamp output, and is shipped with a jumper to power it directly from the flow meter's DC power supply.

The CDI 5400 comes with a standard three year warranty.
