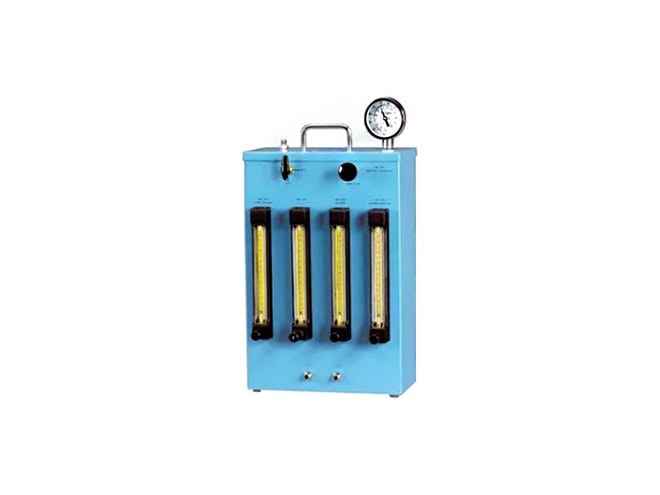

The Panametrics MG101 Hygrometer Calibration System is used to generate precise,
repeatable levels of water vapor in a carrier gas stream. This primary dew point / frost point
generation system achieves an accuracy of ±1°C within a continuously adjustable range.
Hygrometer calibration systems from the MG101 Series employ the elementary principle of gas
dilution. Dry gas is piped into the system, where it is divided into two streams. One stream is
saturated with water vapor at a known temperature, while the other stream remains dry. The
two streams are then mixed. The saturated stream is diluted with varying amounts of the dry
gas to produce the desired gas/water vapor mixture.
The MG101 moisture analyzer calibration system employs a second dilution stage to generate
a gas with a known water concentration in the dew/frost point range of -103°F (-75°C) up to
50°F (10°C) below ambient temperature. When generating frost points in the dry region, the
water concentration of the carrier gas must be insignificant compared to the final required
mixture (1% or less).
The Panametrics MG101 hygrometer calibrator may be used to recalibrate or verify calibration
of Panametrics aluminum oxide hygrometer probes. In addition, it may be used to generate
an accurate reproducible water concentration in a gas for any purpose. Because these
hygrometer calibrators do not use electrical power, they are inherently explosion-proof.
