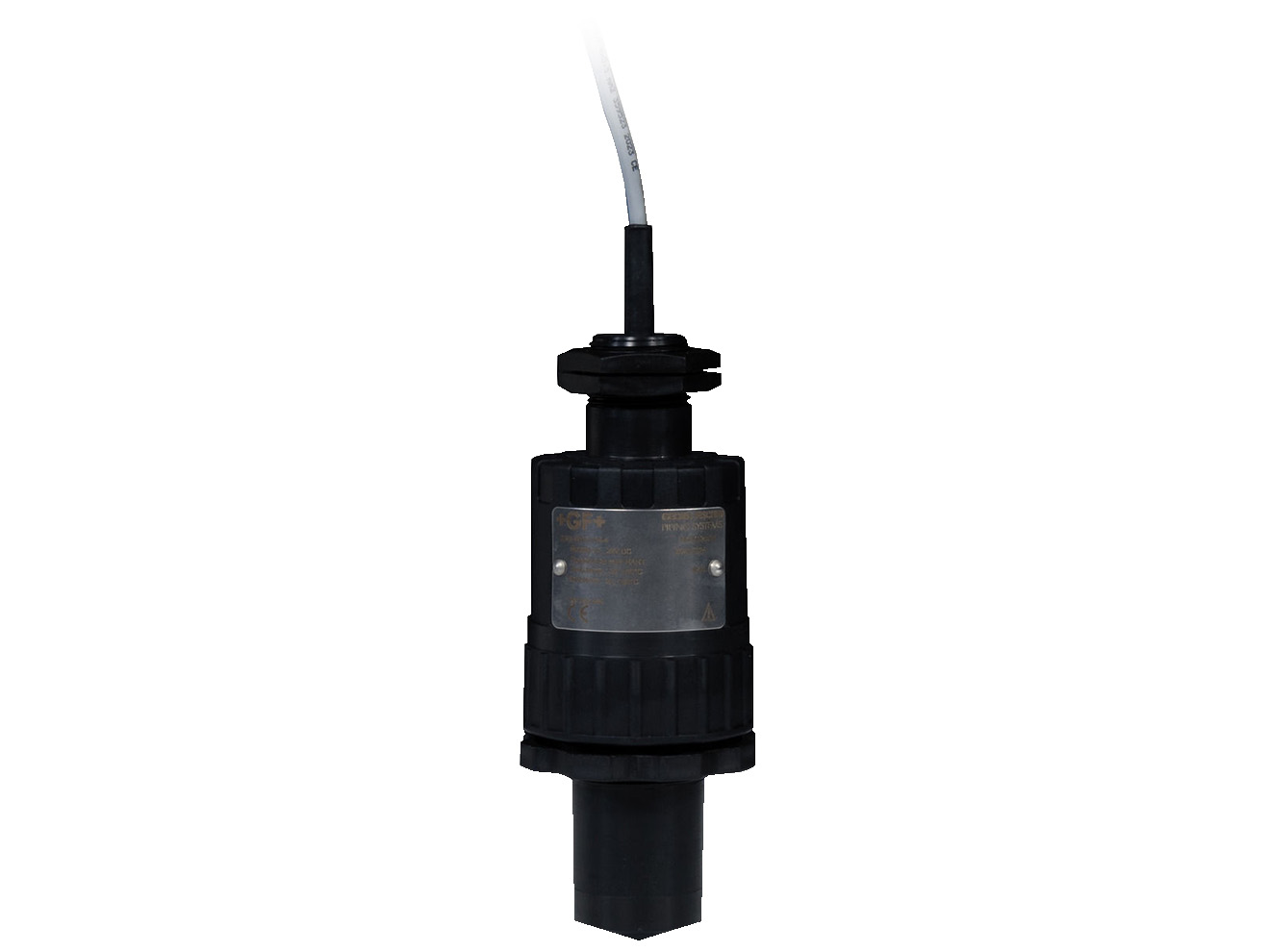

GF Signet 2298 Radar Level Transmitter
High-precision, 80 GHz, non-contact level transmitter with ±2mm accuracy, compact antenna options.
Overview
Features
- 7° beam angle
- Measurement through a plastic tank roof
- Small dead zone
- High accuracy
- Fast response time
- Tank mapping function
- Available with or without LCD display
- Predefined tank shapes
- Works with fumes, condensation, and light foam layers
Description
The GF Signet 2298 Radar Level Transmitter is a 80 GHz (W-band) non-contact level transmitter designed for precision in industrial processes. With ±2mm (±0.079in) accuracy, compact antennas, and easy setup, this level transmitter deliver reliable level measurement for a variety of applications. Built with a fully plastic housing, the 2298 offers antenna options including a durable stainless steel horn or an enclosed plastic tube, ensuring adaptability to different environments.
The 2298 with the optional onboard display module offers intuitive local programming and uses an advanced signal processing algorithm to enhance performance in measurement scenarios. These capabilities, combined with a short dead band, make the radar highly efficient for handling demanding industrial conditions.
Applications:
- Bulk Storage Tanks
- Day Tanks
- Process vessels for Mixing and Batching
- Buffer Tanks
- Conditioning vessels
- Metal or Plastic Tanks
