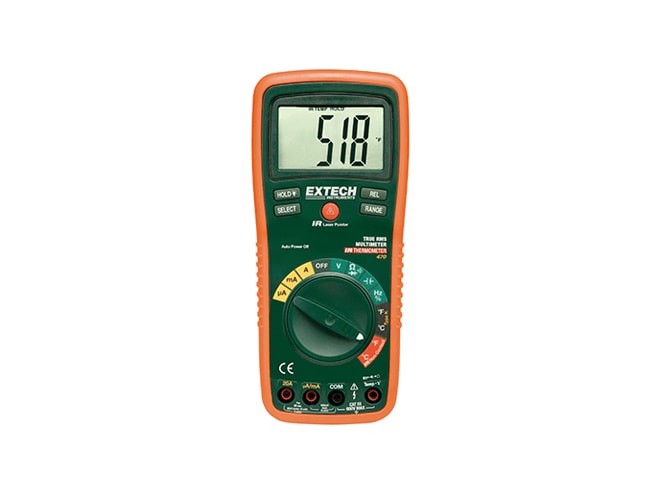

Extech EX470 Multimeter

Autoranging multimeters with built-in non-contact infrared thermometer and optional True RMS functions.

Extech EX470 Multimeter — Extech EX470 Multimeter and IR Thermometer

Extech EX470 Multimeter and IR Thermometer
Extech EX470 Digital Multimeter Product Video

Retired products cannot be ordered

For replacement see the Extech EX470A MultiMeter / Infrared Thermometer

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Built-in non-contact IR thermometer with laser
Low current capability - measure down to 0.1µA
IR thermometer 8:1 (D:S)
0.95 fixed emissivity
EX470 features true RMS, type K t/c, capacitance, frequency and duty cycle

The Extech EX470 multimeter is a combination autoranging multimeter and infrared thermometer that is the perfect multifunction diagnostic tool. The Extech EX470 multimeter measures AC/DC voltage, AC/DC current, resistance, diode test, and continuity plus non-contact infrared temperature. The Extech EX470 multimeter includes true RMS as well as additional measurement functions such as type K thermocouples, capacitance, frequency, and duty cycle. The large, backlit display allows for easy measurement readings. Extech EX470 multimeters also have audible and visual input alerts.

The Extech EX470 multimeter features a non-contact infrared thermometer to measure surface temperature of objects that are unsafe to contact or difficult to reach. The infrared thermometers have a temperature range of -50 to 270°C (-58 to 518°F). The distance to target ratio is 8:1, and emissivity is fixed at 0.95. A laser pointer aids with aiming.

NIST certification is available for the Extech X470 multimeter and is applicable to all functions except for the IR thermometer.

The Extech EX470 Multimeter includes:

CAT III test leads
Multi-position tilt stand and velcro strip for hanging
Protective holster with test lead holder
9V battery
Bead wire temperature probe (EX470)

Spec Sheets

Extech EX400 Series Multimeter Datasheet PDF (608 KB)

Manuals

Extech EX470 Multimeter + IR Thermometer Manual PDF (671 KB)
