Extech EX540/EX542 Multimeter

12 function wireless True RMS industrial multimeter with data logger.

Extech EX540/EX542 Multimeter — Extech EX540 Multimeter

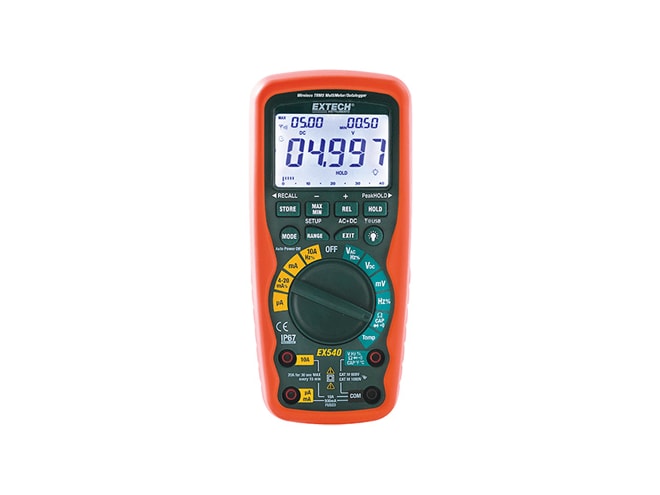

Extech EX540 Multimeter
Extech EX500 Digital Multimeter Built Tough Demo Video

Retired products cannot be ordered

The FLIR DM91 TRMS Multimeter is the recommended replacement.

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

AC/DC voltage range: 0.01mV to 1000V
AC/DC current range: 0.01µA to 20A
Resistance range: 0.01Ω to 40MΩ
Capacitance range: 0.001nF to 40mF
Frequency (electrical) range: 40Hz to 400Hz
Frequency (electronic) range: 0.001Hz to 100MHz
Temperature range: -50 to 1382°F
Basic accuracy: ±0.06%
Diode open circuit voltage of 2.8V DC
MIN/MAX/Relative/Data Hold
Double molded for waterproof protection (IP67)
CAT IV-600V safety rating for industrial applications
Case and basic accessories included

What's in the Box

Double molded test leads
Remote receiver with USB cable
Magnetic hanging strap
Type K bead wire
Temperature probe
9V battery
Software
Carrying case

The Extech EX540/EX542 is an industrial quality True RMS multimeter featuring 1000V input protection over all ranges. The EX540/EX542 was designed to handle the rigors of field testing in adverse conditions including drop-tests from 6 feet as well as double molded housing for waterproof protection to IP67 standards. The EX540/EX542 also includes a CAT-IV-600V safety rating for industrial applications and a 9,999 reading data logger that allows users to store data for later retrieval.

The Extech EX540/EX542 is a versatile instrument capable of accurately measuring AC/DC voltage, AC/DC current, resistance, frequency, capacitance, and temperature. The basic accuracy of the meter is ±0.06%. Results are displayed on a large, 40,000-count LCD for the highest resolution. The EX540/EX542 has a data acquisition mode for real-time transmission to your PC via a wireless USB interface. The EX540 transmits at 915MHz and the EX542 transmits at 433MHz.

Additional features of the Extech EX540/EX542 include: diode and continuity tests, MIN/MAX, Data Hold and Relative, an auto power off with disable feature, and dual sensitivity frequency functions (electrical/electronic).

Spec Sheets

Extech EX540/EX542 Multimeter Datasheet PDF (423 KB)

Manuals

Extech EX540/EX542 Multimeter Manual PDF (599 KB)
