Watlow RF Style RTD | RTD Sensors | Instrumart

Watlow RF Style RTD — Watlow RTD Style RF Metal Transitions

Watlow RTD Style RF Metal Transitions
Watlow RTD Style RF Metal Transitions

Starting at $152.47

View Company Reviews

Manufactured

By Watlow
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Features

Stainless steel transitions crimped to sheath, epoxy filled
Coiled spring strain relief for lead wire protection
Flexible mineral insulated construction
Bendable and highly durable sensor
-328 to 1200°F temperature rating
High accuracy provides dependable readings
0.125 to 0.250 inch diameters available

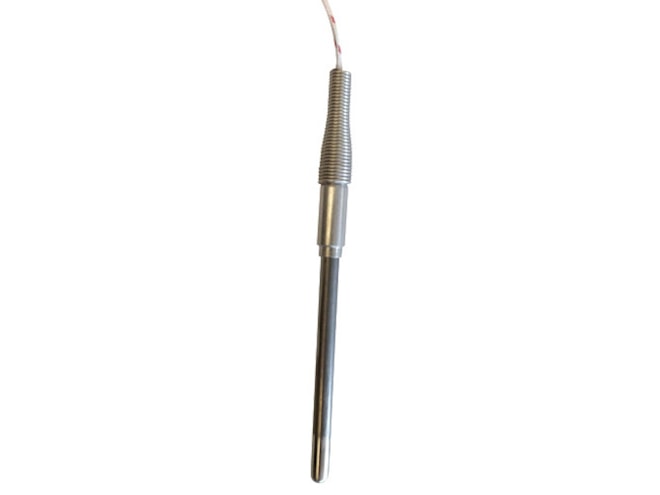

Watlow RF style RTDs feature high accuracy probes with a number of lead options and coiled spring strain relief to protect the leads against sharp bends in the transition area.

Watlow RTDs

Watlow's platinum resistance elements are specially designed to ensure precise and repeatable temperature versus resistance characteristics. Watlow RTDs are made with controlled purity platinum, have high purity ceramic components, and are constructed in a unique strain-free manner.

Performance Capabilities

Ceramic elements are extremely precise and stable within the wide temperature range of -200 to 650°C (-328 to 1200°F).

Patented, strain-free construction

Provides dependable, accurate readings
Allows elements from different lots to be substituted without recalibration

High signal-to-noise output

Increases accuracy of data transmission
Permits greater distances between sensor and measuring equipment

Temperature coefficient (alpha) carefully controlled while insulation resistance values exceed DIN-IEC-751 standards

Ensures sensor sensitivity
Minimizes self-heating
Allows precise measurement
Repeatable

Highly controlled manufacturing process

Ensures wide temperature range
Stabilizes physical and chemical attributes

Applications for the Watlow Metal Transition RTD

Air conditioning and refrigeration servicing
Furnace servicing
Stoves and grills
Textile production
Plastics processing
Petrochemical processing
Micro electronics
Air, gas and liquid temperature measurement
Exhaust gas temperature measurement
