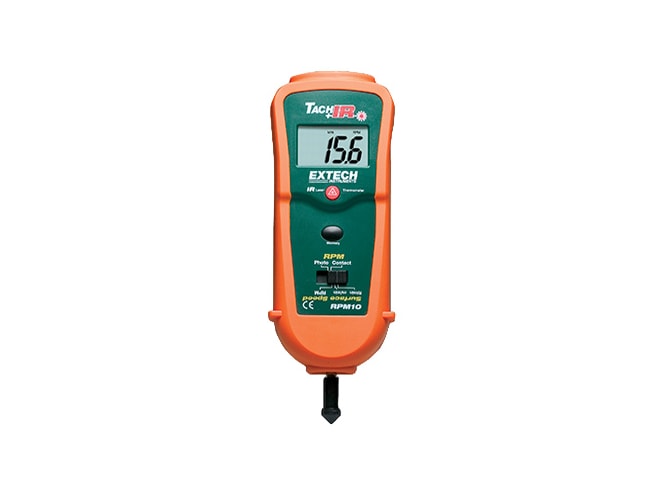

Extech RPM10 Photo/Contact Tachometer with Infrared Thermometer

Name: Extech RPM10 Photo/Contact Tachometer with Infrared Thermometer
Price: 384.99 USD
Availability: InStock

Photo/contact tachometer includes an IR thermometer for non-contact surface temperature measurements.

Starting at $384.99 Found a better price? Let us match.

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Features

Wide temperature range of -4 to 600°F (-20 to 315°C)
Fixed 0.95 emissivity, 6:1 distance to target ratio
Provides wide RPM (photo and contact) and Linear Surface Speed (contact) measurements
Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode
Large 0.4" (5 digit) LCD display
Non-contact photo tachometer uses a laser for greater measuring distance up to 6.5 ft (2m)
Contact tachometer for RPM and surface speed measurements
Memory stores min/max/last
Characters on display reverse direction depending on mode
Double molded housing
Complete with tips/wheel, four 1.5V AA batteries, reflective tape, and carrying case

The Extech RPM10 tachometer provides wide rpm (photo and contact) and linear surface speed (contact) measurements. The Extech RPM10 tachometer features a built-in IR thermometer with laser to measure remote surface temperature on motors and rotating parts. The infrared thermometer has a wide temperature range of -4 to 600°F (-20 to 315°C) with a fixed 0.95 emissivity and 6:1 distance to target ratio.

As a tachometer, the Extech RPM10 tachometer has a range of 10 to 99,999 rpm in photo mode and 5 to 20,000 in contact mode. The Extech RPM10 tachometer is accurate to 0.05% with a maximum resolution of 0.1 rpm in either photo or contact mode.

The Extech RPM10 tachometer has a large 0.4" (5 digit) LCD display. The non-contact photo tachometer uses a laser for greater measuring distance up to 6.5 ft (2m). The contact tachometer is used for RPM and surface speed measurements. The Extech RPM10 tachometer's memory stores min/max/last readings for convenient data analysis and recall. The characters on display reverse direction depending on the selected mode. The Extech RPM10 tachometer is contained in double molded housing and ships complete with tips/wheel, four 1.5V AA batteries, reflective tape, and carrying case.

Documents

Extech Spare Contact Wheels

Spare contact wheels for Extech tachometers.

$47.99

Extech Reflective Tape

Reflective Tape; 23" strips (10 pack) for use with any Extech tachometer.

Mfg. has stock

$47.99

Manufacturer Stock

This stock is typically available to ship in 3 - 5 working days.

Part Number	Price	Available
RPM10 Show Configuration	$384.99	41 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
