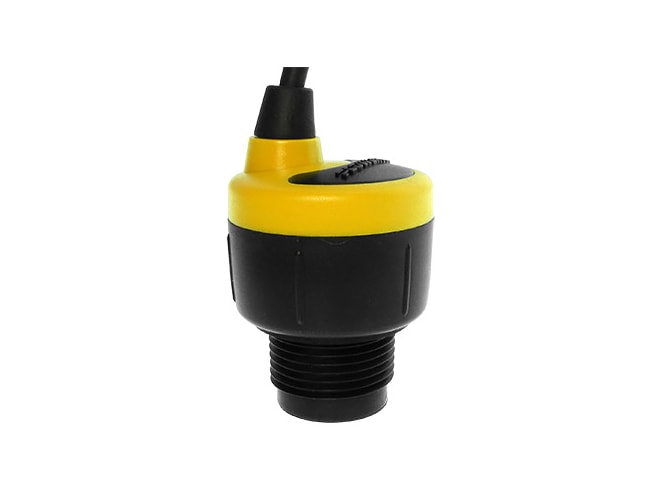

Flowline EchoPod DL14 Ultrasonic Level Sensor

Non-contact ultrasonic level switch, controller, and transmitter for small tanks .

Features

  • Range: 49.2” (1.25m)
  • Accuracy: 0.125” (3mm)
  • Process temp: 20 to 140°F (-7 to 60°C)
  • Provides switch, controller and transmitter capabilities
  • Replacement of multi-point float, conductivity and pressure level switches
  • Well suited for a wide range of corrosive, waste or slurry type media
  • Optimized for small tank applications 49.2" (1.25 m) or less
  • Rugged PVDF enclosure
  • 4-20 mA output
  • Max relay voltage can not exceed 28VDC
  • Configured via WebCal software and optional USB interface tool
  • Beam width of 2"
  • RoHS Compliant

The Flowline EchoPod DL14 ultrasonic level sensor is a general purpose, non-contact ultrasonic level sensor for small tanks (49.2" or less). The Flowline EchoPod ultrasonic level sensor combines switch, controller, and transmitter capabilities in one package providing a total solution for fluid handling and automation. By combining these functions, the Flowline EchoPod ultrasonic level sensor enables flexible design applications for system integration or retrofit while replacing floats, conductance and pressure sensors that fail due to dirty, sticking and scaling media.

The Flowline EchoPod ultrasonic level sensor features a rugged PVDF enclosure that is well suited for a wide range of corrosive, waste or slurry type media, and can be broadly selected for atmospheric day tank, process vessel or dispenser, pump lift station, and waste sump applications. Level indication can be monitored via a local display or controlled through a PLC.

The Flowline EchoPod ultrasonic level sensor utilizes 4 relays and 4-20 mA output for multiple control / switch functions allowing the EchoPod to be your total solution.

The Flowline EchoPod ultrasonic level sensor is user configured via WebCal® PC user interface software through the optional FOB interface module (LI99-2001, which is required to configure the EchoPod. This tool can configure multiple sensors). Configuration files can be easily created, saved, copied into one or more units, emailed or modified. A PDF wiring schematic is available for each configuration of the Flowline EchoPod ultrasonic level sensor.

RoHS logo

Flowline Installation Fittings
Flowline Installation Fittings

Installation fittings for Flowline Level Transmitters.

Some Models in Stock
Starting at $11.00
Flowline LI40 PodView Local Level Indicator
Flowline LI40 PodView Local Level Indicator

Displays engineering units for level or volume level readings and shares power with an EchoPod ultrasonic sensor, including loop powered devices.

$275.00

Here's how some of our customers use this product...

Small Chemical Tank Level with Alarm Outputs

The Background: Our customer is a municipal wastewater treatment plant that needs to measure the level of a chemical solution in a small tank.

The Problem: The level transmitter they select needs to transmit measurements back to a nearby control panel and have a two-stage low alarm triggered with the relay outputs.

The Solution: We recommended the Flowline DL14 which is ideal for the tank size and includes a two-wire 4-20mA output and 4 programmable relay outputs. Using the optional programming FOB and WebCal software, the sensor was programmed to suit the tank size an alarm requirements.

Part Number Price Available
DL14-01
Show Configuration
$515.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
