Flowline EchoSwitch Ultrasonic Level Switch

Non-contact level detection up to 26.2ft (8m) with 3 programmable relays and a 4-20mA signal output.

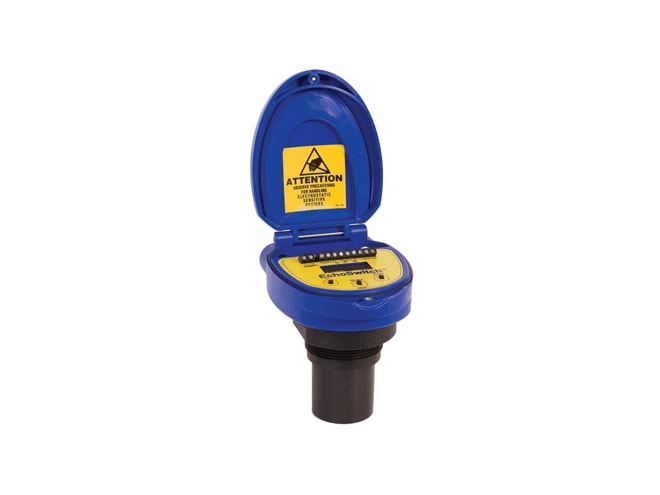

Flowline EchoSwitch Ultrasonic Level Switch Open View
Flowline EchoSwitch Ultrasonic Level Switch Closed View

Starting at $1,075.00

View Company Reviews

Manufactured

By Flowline

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

3-channel relay control
Simple push configuration
LCD display indicates level and relay status
-7 to 140°F (-20 to 60°C) process temp
NEMA 4X (IP65) enclosure rating
RoHS compliant, CE approval

The Flowline EchoSwitch ultrasonic level switch provides continuous level detection up to 26.2ft(8m) with 3 programmable relays for level switch or level control functions, and is configured via the integral push button display module. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve), duplex (two pumps) or triplex (three pumps) level control modes with selectable time delay and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for pump lift station, sump and day tank level applications.

The Flowline EchoSwitch can be configured before installation. The switch features a non-volatile memory preventing set points from being lost even when the switch is powered down. Configuration is simple using the three push buttons and built-in LCD display. All that's needed to configure the switch is tank height, maximum fill height, and the measured distances from the bottom of the tank to each set point. The EchoSwitch configuration accepts several units of measurement including inches, centimeters, feet, or meters.

Flowline EchoSwitch Ultrasonic Level Switch Part Number Conversion

LU77-5005 is now LU77-5004
LU77-5065 is now LU77-5064
LU74-5005 is now LU74-5004
LU74-5065 is now LU74-5064
LU78-5005 is now LU78-5004
LU78-5065 is now LU78-5064

Spec Sheets

Flowline EchoSwitch Ultrasonic Level Switch Datasheet PDF (612 KB)

Manuals

Other

Instrumart's Level Application Form (141 KB)

Links

All possible part numbers

Flowline Installation Fittings

Installation fittings for Flowline Level Transmitters.

Some Models in Stock

Starting at $12.00

Part Number	Price	Available
LU77-5004 Show Configuration	$1,075.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
