Dakota Ultrasonics PX Series Thickness Gauges

Precision thickness gauges with a measuring range from 0.0060 to 1.0000 inch.

Dakota Ultrasonics PX Series Thickness Gauges
Dakota Ultrasonics PX-7 Thickness Gauge
  • Dakota Ultrasonics PX-7 Thickness Gauge
    Dakota Ultrasonics PX-7 Thickness Gauge
  • Dakota Ultrasonics PX-7DL Thickness Gauge
    Dakota Ultrasonics PX-7DL Thickness Gauge
Dakota Ultrasonics PX Series Thickness Gauges
Dakota Ultrasonics PX-7 Thickness Gauge
Dakota Ultrasonics PX Series Thickness Gauges
Dakota Ultrasonics PX-7DL Thickness Gauge
Retired products cannot be ordered
The Dakota Ultrasonics PZX Series Thickness Gauges are the recommended replacements

View Company Reviewsby Trustpilot
Manufactured
  • By Dakota NDT
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Product Manual Product Specs
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • Range: 0.0060 to 1.0000 inch (0.15 to 25.40 mm)
  • Resolution: 0.0001 inch (0.001 mm)
  • Velocity Range: 0.0492 to 0.3937 in/μs (1250 to 10,000 m/s)
  • Measuring Modes: Interface to Echo, Echo-to-Echo, (through paint), Plastics, and Auto-Switchable
  • Four readings per second for single point measurements or 8 per second in Scan Mode
  • Single point calibration
  • Differential Mode, Alarm Mode, RS-232 Data Output
  • Data logging for up to 1,000 readings (PX-7DL only)

What's in the Box

  • Standard 15MHz 1/4" delay line transducer
  • Cable
  • Couplant, Manual
  • Plastic carrying case
  • Certificate of calibration
  • AA Batteries

Description

The Dakota Ultrasonics PX Series thickness gauges utilize state-of-the-art digital technology to produce fast and accurate readings. They are packaged in an all aluminum sealed case making it resistant to the working environment. With a measuring range of 0.0060 to 1.0000 inch (0.15 to 25.40 mm), the PX Series gauges can be used in a number of different applications.

These Dakota Ultrasonics thickness gauge are easy to operate and offer many different features including alarm mode, differential mode, internal data-logging and an RS-232 data output port to interface with a computer or other data acquisition system.

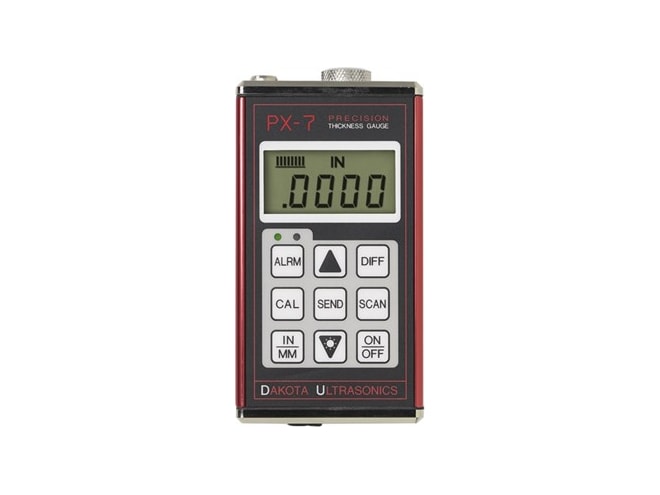

PX-7 Thickness Gauge

The PX-7 thickness gauge specifically features field calibration of all materials in interface-echo mode, echo-to-echo mode and PLAS plastic mode. Echo-to-echo mode allows you to take measurements without removing paint or coatings.

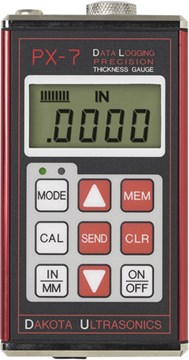

PX-7DL Thickness Gauge

The Dakota Ultrasonics PX-7DL gauge includes all of the features of the PX-7 along with scan mode and a data logger function. The data logger function can store up to 1,000 readings (in 10 groups of 100). The PX-7DL also includes a transfer cable and computer software.

The Dakota Ultrasonics PX series ships complete with a standard 15MHz 1/4" delay line transducer (this transducer can be substituted for another model, please contact us for details), cable, couplant, manual, plastic carrying case, certificate of calibration and AA Batteries.

Documents

Spec Sheets

  • Dakota Ultrasonics PX Series Thickness Gauges Datasheet PDF (282 KB)

Manuals

  • Dakota Ultrasonics PX-7 Thickness Gauge Manual PDF (181 KB)
  • Dakota Ultrasonics PX-7 DL Thickness Gauge Manual PDF (188 KB)

Links

  • All possible part numbers

Accessories

Required Transducers

At least one transducer is required for this product

Dakota NDT Single Element Transducers
Dakota NDT Single Element Transducers

Single element transducers for Dakota NDT PZX1 Series thickness gauges.

Starting at $615.00

Accessories

Please consider these optional accessories.

Dakota NDT Couplant
Dakota NDT Couplant

Acoustic couplant to apply to the sensor face to ensure a complete acoustic pathway between the sensor and material being measured.

Some Models in Stock
Starting at $20.00
Dakota NDT X-000-0001 5 Step Calibration Block
Dakota NDT X-000-0001 5 Step Calibration Block

5 step calibration block from 0.100 to 0.500 inch, made of 4340 steel.

In Stock
$235.00
Dakota NDT X-000-0002 4 Step Calibration Block
Dakota NDT X-000-0002 4 Step Calibration Block

4 step calibration block from 0.250 to 1.0 inch, made of 4340 steel.

In Stock
$235.00
Dakota NDT Carrying Case
Dakota NDT Carrying Case

Wood carrying case for Dakota NDT calibration blocks.

$60.00
Dakota NDT Dual LEMO 00 to Armored Microdot Cable
Dakota NDT Dual LEMO 00 to Armored Microdot Cable

4 foot cable for the Dakota NDT PMX2-DL, UMX-2, MX1-DL, MX2-DL & CMX series.

$175.00
Dakota NDT Dual LEMO 00 to High Temperature Armored Microdot Cable
Dakota NDT Dual LEMO 00 to High Temperature Armored Microdot Cable

4 foot cable for the Dakota NDT PMX2-DL, UMX-2, MX1-DL, MX2-DL & CMX series.

$195.00
Dakota NDT Single LEMO 00 to Microdot Cable
Dakota NDT Single LEMO 00 to Microdot Cable

Cable for Dakota Ultrasonics FX70, FX80, PMX2-DL, CMX, BT1-DL, and BT2-DL series.

Starting at $80.00

Applications

This product can be used in the following applications:

  • Aerospace
  • ASME Testing Standard
  • Automotive
  • Aviation
  • Oil, Gas and Petrochemical
  • Pipe and Tube Inspection
  • Research and Development
  • Semiconductor
  • Weld Quality Testing
  • Wind Power
