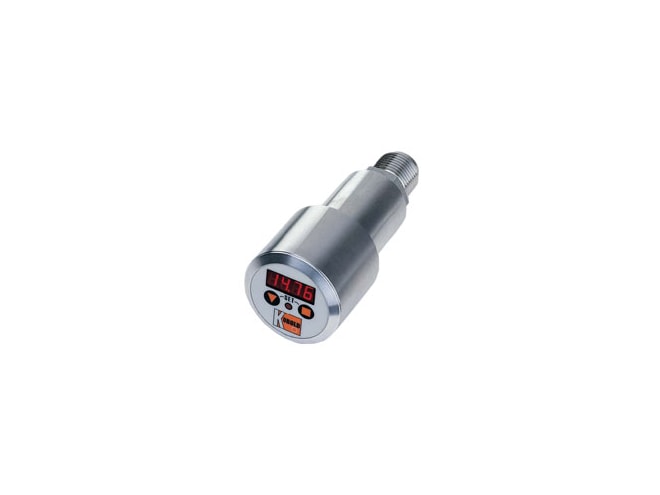

Kobold PDD Series Pressure Switch

Name: Kobold PDD Series Pressure Switch
Price: 566.0 USD
Availability: InStock

Very versatile, simple to operate digital pressure switch.

Starting at $566.00

View Company Reviews

Manufactured

By Kobold

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

0-30" Hg vacuum to 0-5800 PSIG
LED display
±0.5% of full scale accuracy
Piezo-resistive ceramic sensor
-4 to 176°F process medium temperature range
-4 to 140°F ambient operating temperature range
304 stainless steel housing material
Transistor NPN or PNP switch type

The Kobold PDD series digital pressure switch integrates the latest solid state sensing technology into a very versatile, simple to operate package. Programming features include setpoint, reset point, window mode, pulsation dampening, switch logic, zero (tare) adjustment and user settable lockout code.

The ceramic sensing system and solid state transistor switch ensure an exceptionally long cycle life with virtually no calibration drift. These features, along with the compact, robust stainless steel package make the PDD an ideal choice for OEM applications.

Spec Sheets

Kobold PDD Series Pressure Switch Datasheet PDF (210 KB)

Manuals

Kobold PDD Series Pressure Switch Manual PDF (519 KB)

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number	Price	Available
PDD-153N2P025 Show Configuration	$566.00	2 in stock
PDD-153N2P095 Show Configuration	$566.00	2 in stock
PDD-153N4P065 Show Configuration	$566.00	2 in stock
PDD-153N2P085 Show Configuration	$566.00	1 in stock
PDD-153N4P095 Show Configuration	$566.00	1 in stock
PDD-253N4P125 Show Configuration	$566.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
