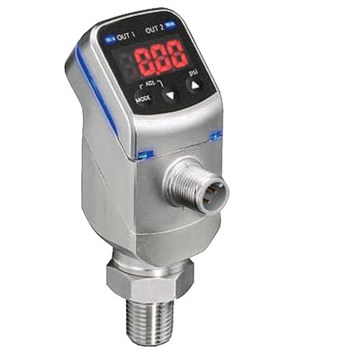

Ashcroft GC35 Digital Pressure Sensor

Combined 3 in 1 digital pressure gauge, switch & transducer.

Starting at $624.41

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 16-20 weeks
Product Manual Product Specs

Features

  • 4 digit, 8mm LED display
  • ±1.0% FS accuracy
  • 11 to 27VDC supply voltage
  • IP 65/67
  • GloBand™ indicator with 360 degree visibility
  • Output Options:
    • 4-20mA & (1) NPN/PNP Switch
    • (2) NPN/PNP Switches

The Ashcroft GC35 digital pressure sensor is a unique digital pressure sensor ideal for monitoring pressures in hydraulic presses/stamping equipment and lifts, water/wastewater pressure control, and cooling and lubrication systems where consistent, reliable pressure measurement is essential. The GC35 is equipped with Ashcroft's field-proven thin film sensor and can monitor a wide variety of applications.

Ashcroft GC35 digital pressure sensors are available in gauge pressure from 0-50 to 0-7500 psi and compound ranges up to 300 psi and vacuum. This versatile sensor includes a MIN/MAX HOLD feature to record high and low pressure events, and adjustment for controlling display rates.

A rugged aluminum IP65/IP67 enclosure allows for a compact footprint and incorporates a highly visible LED display for local indication. Analog scaling allows the user to configure the unit to any range within the full scale of the sensor range, while integrated switches offer the actuation and deadband to any points within the full scale range.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Ashcroft Mating Connector
Ashcroft Mating Connector

M12 mating connector with 3 feet cable.

$47.16

Accessories

Please consider these optional accessories.

Ashcroft V01 Gauge Valve
Ashcroft V01 Gauge Valve

Isolates process from instrument assembly, 316L stainless steel construction, 6,000 psi max pressure.

Starting at $121.30
Ashcroft V01 Block and Bleed 2-Valve Manifold
Ashcroft V01 Block and Bleed 2-Valve Manifold

Isolates and bleeds the process from instrument assembly, 316L stainless steel construction.

Starting at $159.61
Ashcroft V02 Block and Bleed 2-Valve Manifold
Ashcroft V02 Block and Bleed 2-Valve Manifold

Isolates and bleeds the process from instrument assembly, 316L stainless steel construction.

Starting at $254.11
Ashcroft V01 3 Valve Manifold
Ashcroft V01 3 Valve Manifold

Isolates each port and equalize pressure for instrument maintenance, 316L stainless steel construction.

Starting at $223.46
Ashcroft V01 5 Valve Manifold
Ashcroft V01 5 Valve Manifold

Isolate and bleed the process for each port as well as equalize pressure for instrument maintenance.

Starting at $319.24
Ashcroft V02 Direct & Remote Mount Three-Valve Manifolds
Ashcroft V02 Direct & Remote Mount Three-Valve Manifolds

Isolates each port and equalizes pressure for instrument maintenance, 316L stainless steel construction.

Starting at $332.01
Ashcroft V03 3 Valve Manifold
Ashcroft V03 3 Valve Manifold

3-valve manifolds isolate each port and equalize pressure for instrument maintenance.

Starting at $230.80
Ashcroft V02 Direct & Remote Mount 5 Valve Manifold
Ashcroft V02 Direct & Remote Mount 5 Valve Manifold

5-valve manifolds isolate and bleed the process for each port as well as equalize pressure for instrument maintenance.

Starting at $619.24
Ashcroft V02 High Pressure Ball Valve
Ashcroft V02 High Pressure Ball Valve

Floating ball design provides bi-directional isolation, anti-blowout stem design, 6092 psi max pressure.

Starting at $395.84
