Amprobe 34XR-A Digital Multimeter

Name: Amprobe 34XR-A Digital Multimeter
Price: 270.99 USD
Availability: BackOrder

True RMS digital multimeter with temperature measurement.

$270.99

View Company Reviews

Part Number

34XR-A

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

DC Voltage
- Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
- Accuracy: ±(0.5 % rdg + 1 dgt)
AC Voltage (True RMS)
- Ranges: 400 mV, 4 V, 40 V, 400 V, 750 V
- Accuracy: up to ±(1.2 % rdg + 8 dgts)
AC/DC Current
- Ranges: 400 μA, 4 mA, 40 mA, 300 mA, 10 A
- Accuracy: up to ±(1.0 % rdg + 1 dgt) DC; ±(1.5 % rdg + 8 dgts) AC
Resistance
- Ranges: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ
- Accuracy: up to ±(1.0 % rdg + 4 dgts)
Capacitance
- Ranges: 4 μF, 40 μF, 400 μF, 4000 μF
- Accuracy: up to ±(5.0 % rdg + 5 dgts)
Temperature
- Range: -4 °F to 1832 °F
- Accuracy: ± (1.0 % rdg + 6 °F )
Frequency
- Ranges: 4 kHz, 40 kHz, 400 kHz, 4 MHz, 40MHz
- Accuracy: ±(0.1 % rdg + 3 dgts)
Continuity: Audible Indication < 35 Ω
Duty Cycle, Diode Test, Overload Protection
3-3/4 digit LCD with 41-segment analog bar graph
Cat II 1000V, Cat III 600V safety rating
UL listed

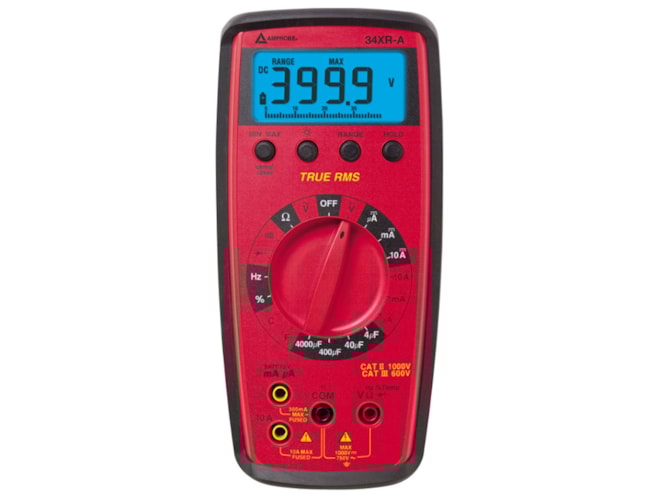

The Amprobe 34XR-A is a True RMS digital multimeter with temperature measurement. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 34XR-A is designed for contractors and field service technicians. The meter includes a Cat II 1000V, Cat III 600V safety rating.

The 34XR-A includes all the features and functions needed for a wide range of applications. The meter measures DC voltage to 1000 V, AC voltage to 750 V, AC/DC current to 10 A, resistance to 40 MΩ, capacitance to 4000 μF, frequency to 40MHz and temperature from -4 °F to 1832 °F. Additionally, the meter has a continuity beeper, diode test, overload protection, and measures duty cycle. All measurements have wide testing ranges and high accuracy. Testing results are displayed on the 3-3/4 digit LCD with 41-segment analog bar graph.

Other features of Amprobe 34XR-A digital multimeters include an input warning tone when test leads are put in the wrong jacks; Min/Max, Data Hold and Range Lock; Auto power-off and a separate door for battery and fuse access.

The Amprobe 34XR-A digital multimeter ships complete with:
