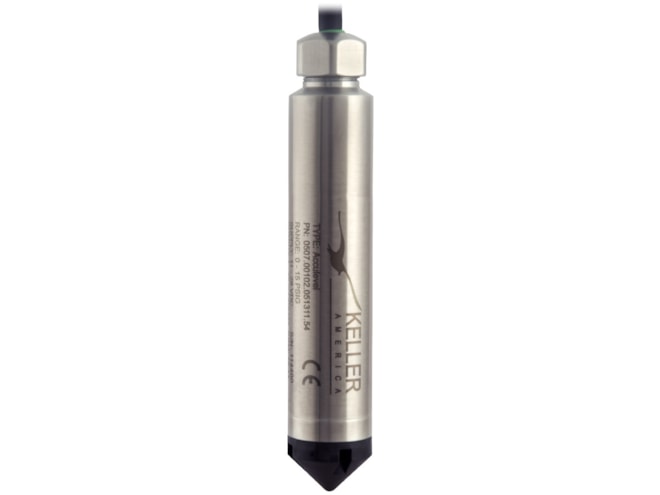

Keller Acculevel Submersible Level Transmitter

Name: Keller Acculevel Submersible Level Transmitter
Price: 541.5 USD
Availability: InStock

Level transmitter submersible to 900 feet of water with RS485 and choice of 4-20mA, 5VDC, 10VDC or SDI-12 ouput.

Starting at $541.50

View Company Reviews

Manufactured

By Keller

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

Non-linearity, hysteresis, & non-repeatability accuracy
- ±0.1% (±0.05% optional) FS Static (25°C)
- ±0.25% (±0.1% optional) FS Total Error Band
- SDI version includes higher accuracy ±0.1% FS TEB
NSF 61 and NSF 372 certifications (PE jacket only)
4-20mA & SDI-12 include lightning protection
- Lifetime warranty against voltage surges
Ranges available from 0 to 3 up to 900ftWC
316L stainless steel construction (Titanium optional)
-10 to 80ºC compensated temperature
IP68 environmental protection
2yr warranty covers defects in materials & workmanship
Built in the USA (ARRA Section 1605 Compliant)
CE certified

Stock Acculevel sensor ranges can be customized using the Keller K-114 USB Converter. Call for more details

The Keller Acculevel submersible level transmitter incorporates microprocessor-controlled signal conditioning to provide outstanding accuracy over temperature. The ability of the Acculevel to provide sustained performance over a wide range of operating conditions makes it ideally suited to environmental monitoring applications such as surface water, streams, and reservoirs. The RS485 connection allows users to retrieve both level and temperature data, interface with a PC, and rescale the analog output from 10% to 110% of the basic range (converter cable and Keller software required).

The most recent model is the serial digital interface version, the Acculevel SDI. It combines two industry standard digital communication protocols (SDI-12 & RS485) and is suited for environmental monitoring applications using existing SDI-12 monitoring equipment. The Acculevel SDI is great for remote applications that require battery-powered operation with minimal current draw and networking multiple sensors to a data recorder.

The Acculevel transmitter with PE jacket is approved to NSF 61 and NSF 372 standards for water quality. Models equipped with 4-20mA or SDI-12 output include guaranteed lightning protection at no additional cost. This internal circuit provides a lifetime warranty against damage from voltage surge, making it perfect for installation in areas prone to chronic damage due to transients caused by lightning.

Spec Sheets

Manuals

Keller Acculevel Submersible Level Transmitter Manual (1.2 MB)

Other

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Keller Removable Cable

Removable cable assembly for use with Acculevel and Acculevel SDI submersible level transmitters.

Starting at $216.25

Accessories

Please consider these optional accessories.

Keller 1820-28-A3 External Surge Protector

Lightning/surge protection of power supplies, readouts, and PLCs.

In Stock

$149.00

Keller 900001.0033 Stabilizing Weight

Zinc prop shaft anode .

In Stock

$28.00

Keller HU02216001 Cable Hanger

In Stock

$30.50

Keller 900001.0002 Drying Tube Assembly

Attaches directly to cable vent tube and intercepts water vapor.

In Stock

$28.50

Keller 900001.0034 Termination Enclosure

NEMA 4X clear front enclosure with liquid-tight cable fittings & a terminal strip, allows for mounting a drying tube or bellows assembly.

In Stock

$240.00

Keller 900001.0014 Pressure Test Adapter

Pressure test adapter for the Levelgage and Acculevel.

In Stock

$280.00

Keller 900001.0009 Bellows Assembly

Aneroid bellows attaches to cable vent, alternative to the drying tube.

In Stock

$45.00

FloCat STE-DISP Sensor Termination Enclosure with Display

Compatible with any manufacturer's transmitter & moisture protection method, outputs preprogrammed by Instrumart at no cost.

In Stock

$650.00

Keller K-114 USB Converter

Interface converter with screw-type terminal, connections for +Vcc, GND, RS485A, RS485B.

In Stock

$195.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Temperature Compensated Well Water Level Monitoring

The Background: Our customer is a farmer who uses a fresh-water well to provide water for all uses on the farm. He requires an accurate means of monitoring water level in this well.

The Problem: The customer has been using a level sensor that was not temperature-corrected which was causing accuracy issues making it impossible to know the true water level in the well.

The Solution: We recommended the Keller Acculevel submersible level transmitter which is fully compensated for temperatures from -10 to 80ºC. The total error band is just 0.1% making it easy for the customer to get accurate results. The Acculevel also offers guaranteed lightening protection making it a great solution for this application.

Part Number	Pressure Type	Pressure Range	Cable Length	Price	Available
0507.02007.051312.60 Show Full Configuration	Feet of Water Column	0 to 30	60 feet	$729.00	6 in stock
0516.01302.051311.13 Show Full Configuration	PSIG	0 to 10	50 feet	$607.50	5 in stock
0516.01202.051308.13 Show Full Configuration	PSIG	0 to 5	35 feet	$582.75	3 in stock
0516.02002.051316.13 Show Full Configuration	PSIG	0 to 30	100 feet	$690.00	3 in stock
0516.00302.051326.13 Show Full Configuration	PSIG	0 to 100	275 feet	$978.75	2 in stock
0507.01705.051311.13 Show Full Configuration	Inches of Water Column	0 to 60	50 feet	$607.50	1 in stock
0516.01202.051305.60 Show Full Configuration	PSIG	0 to 5	20 feet	$663.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
