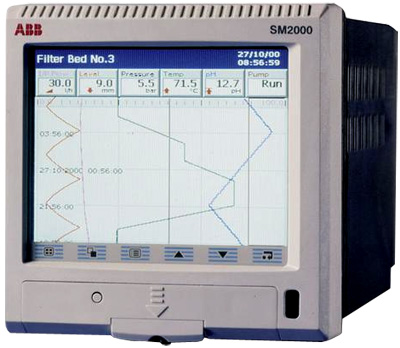

The ABB ScreenMaster SM2000 advanced videographic recorder is a state-of-the-art solution to recording and data
storage. Incorporating up to 12 universal input channels, an intuitive touchscreen interface, and unsurpassed
environmental protection; the SM2000 is an ideal replacement for paper recorders and an excellent solution for a
wide range of applications including water treatment plants, cold storage, stack gas monitoring, environmental
monitoring, autoclaves and more.
ABB ScreenMaster SM2000 videographic recorders provide 12 recording channels and up to 12 universal analog inputs
which can be viewed in a variety of display formats: chart, bargraph, digital indicator and process summary.
Historical logs are provided for recording alarms, operator and system events and totalizer values. A high quality
5.7 inch TFT display and analog, resistive touchscreen provide a clear and intuitive user interface. The SM2000 has
an onboard Flash memory capacity of 8 Mb providing storage of up to 2.9 million samples. Process data can also be
logged to a Compact Flash card, then transferred to a PC for storage and analysis.
Unique to this type of product, the SM2000 has unrivaled protection ratings of IP66 and NEMA4X and includes a
fully-sealed, lockable media door. This enables the SM2000 to be installed, without additional protection, in
applications that require frequent hosedown. With industrial standard noise emission and immunity protection, the
SM2000 also operates effectively in high electrical-noise environments.
The ABB ScreenMaster SM2000 ships complete with:
- Panel-mounting clamps
- Media-door lock keys
- Shunt resistors (1 per analog input)
- Compact flash card (only with compact flash memory card option)
ABB ScreenMaster SM2000 Specifications:
| General Features |
| Display |
140 mm (5.7 inch) TFT |
| Interface |
Touchscreen |
| Internal Memory |
8 Mb Flash |
| Number of Channels |
12 |
| IP Rating |
NEMA 4X & IP66 |
| Input |
| Universal Analog/Digital Inputs |
6 or 12 |
| 2-Wire Transmitter Power Supply |
2 loops standard, 8 optional |
| Additional I/O |
| Relays |
18 optional |
| Digital Inputs |
18 optional |
| Digital Outputs |
18 optional |
| Analog Outputs |
6 optional |
| MODBUS RS485 |
Standard |
| 10BaseT Ethernet |
Optional |
| Advanced Processing |
| Alarms |
24 |
| Totalizers |
12 standard |
| Advanced Math/Logic |
Optional |
| Data Security |
21 CFR Part 11 Compliant |
