Starting at $219.00
  • Usually ships in 4-6 weeks

Overview

Features

  • 10-year battery life
  • 4Hz reading rate
  • Multiple start/stop function
  • Ultra high-speed download
  • 2,095,104 reading storage capacity
  • Memory wrap
  • Battery life indicator
  • Optional password protection
  • Programmable high and low alarms
  • NIST traceable certificate
  • Field upgradeable
Requires IFC200 USB Cable & Software Package (Purchased separately)

Description

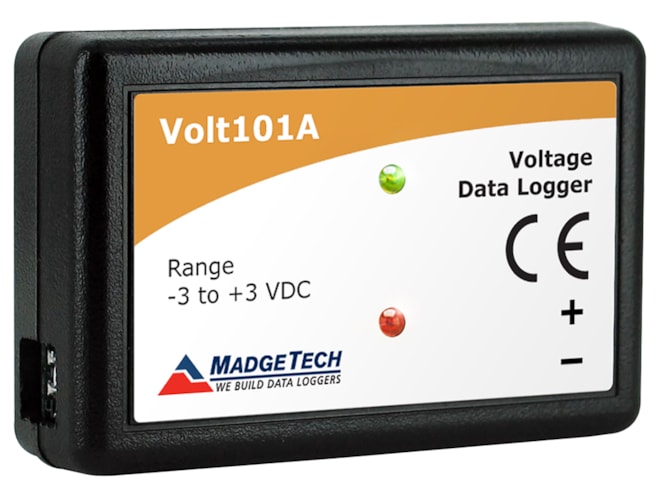

The MadgeTech Volt101A voltage data logger is a versatile data logging device with many uses and applications. Users can connect negative and positive wire leads directly to the terminal port on the Volt101A to monitor and measure voltage levels. The Volt101A is commonly used to assess battery efficiencies or photovoltaic studies to identify how much energy is being created from solar cells.

The Volt101A features a removable terminal block to allow for simple retrieval of the data logger for downloading while leaving the leads connected. With a ten-year battery life and the ability to store over 2 million time and date stamped readings, this device is ideal for long term deployment and voltage studies.

Four models of the Volt101A are available. The 2.5V is capable of measuring -3V to 3V, the 15V capable of measuring -8V to 24V, and the 30V, which can measure from -8V to 32V. For lower voltage applications that require a higher resolution, MadgeTech also offers the Volt101A 160mV differential model, which can measure voltage between -160 and 160mV.

Using the free MadgeTech software, starting, stopping, and downloading from the Volt101A is simple and easy. Graphical, tabular, and summary data is provided for analysis, and data can be viewed in multiple units using the Engineering Units function. The data can also be automatically exported to Excel for further calculations.

Accessories

Applications

Here's how some of our customers use this product...

Datalogging in Small Spaces

The Background: Our customer is a facility that needs to data log a low voltage process signal inside a small enclosure.

The Problem:* The enclosure has a NEMA 4X rating which must be maintained so the data logger needs to be able to fit inside the small enclosure.

The Solution: We recommended the MadgeTech Volt101A which is battery powered and, at just 1.4 inches x 2.1 inches x 0.6 inches, is small enough to fit inside cramped spaces.
