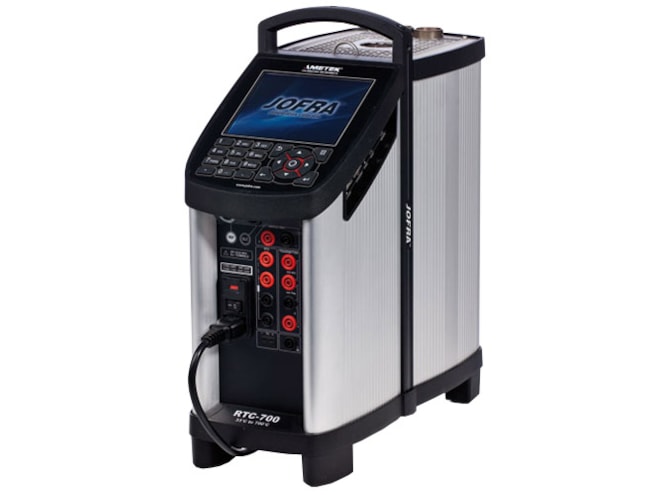

The Ametek Jofra RTC-700 is an advanced reference temperature calibrator that offers high performance along with a full range of features. The Ametek Jofra RTC-700 has a wide temperature range and provides precise temperature calibration of sensors, regardless of type and format, through an innovative triple-zone heating technology.
The Ametek Jofra RTC-700 has a temperature range of 33° to 700°C (91° to 1292°F). The unit has three heating zones, each of which is independently controlled for precise temperature calibrations. The homogeneity of the lower zone is close to that of a laboratory liquid bath. The lower and middle zones ensure optimum heat dissipation throughout the entire calibration zone. The upper zone compensates for heat loss from the sensor- under- test as well as from the open top. This eliminates the need for extra insulation of sensors-under-test and makes it possible to calibrate liquid-filled and other sensors.
The RTC-700 offers a further improvement on this technology with its Dynamic Load Compensation (DLC) sensor which measures the temperature in the calibrator's insert and provides feedback to the active triple-zone system to compensate for the temperature differences resulting from testing various sensors. This allows the RTC-700 to perform highly accurate temperature calibrations without being affected by the size and number of sensors under test. The RTC-700 also offers other innovative features such as intelligent sensors for plug ‘n' play connectivity, an easy-to-read full-color VGA display, and a USB connection for improved communications and software downloads.
The Ametek Jofra RTC-700 reference temperature calibrator is available in three configurations: RTC-A reference temperature calibrator, RTC-B reference temperature calibrator with input for reference sensor, DLC sensor and sensors-under-test, and RTC-C reference temperature calibrator with input for reference sensor and DLC sensor. The RTC-700 can be used without an external reference sensor. However, users will obtain better accuracies and realize the calibrator's full potential by utilizing the STS-200 reference sensor. Both the STS-200 and DLC sensors contain all individual calibration data regarding the sensor, allowing users to change the reference sensor and be up and running immediately.
The RTC-700 features a rugged, lightweight design and inserts that cover most commonly used sensor sizes. A unique design allows the units to calibrate threaded sensors and sensors with connection heads.
The Ametek Jofra RTC-700 (models A, B and C) ships complete with the following:
- Mains power cable
- Traceable calibration certificate (temperature performance)
- Tool for insertion tubes
- JOFRACAL software
- USB cable
- Heat shield
- Manuals
Model B contains the following extra items:
- Test cables (2 x red, 2 x black)
- Traceable certificate (input performance for reference sensor and DLC sensor)
- Traceable certificate (input performance for sensor-under-test inputs)
Model C contains the following extra items:
- Traceable certificate (input performance for reference sensor and DLC sensor)
Ametek Jofra RTC-700 Temperature Calibrator Specifications:
| Parameter |
Range |
| Temperature Range |
@ 0°C ambient |
10 to 700°C |
|
@ 23°C ambient |
33 to 700°C |
|
@ 40°C ambient |
50 to 700°C |
| Accuracy |
With external ref. sensor (models B&C) |
±0.11°C |
|
With internal ref. sensor |
±0.29°C |
| Stability |
@ 33° to 125°C |
±0.008°C |
|
@ 125° to 425°C |
±0.015°C |
|
@ 425° to 700°C |
±0.02°C |
| Axial Homogeneity (@ 60 mm) |
@ 33° to 100°C |
0.10°C |
|
@ 100° to 420°C |
0.25°C |
|
@ 420° to 700°C |
0.40°C |
| Resolution |
All temperatures |
1°, 0.1°, 0.01°, or 0.001° |
| Heating Time |
33° to 700°C |
45 minutes |
| Cooling Time |
155 to 100°C |
4 minutes |
|
700° to 100°C |
43 minutes |
|
100° to 50°C |
17 minutes |
|
50° to 33°C |
20 minutes |
|
| Time to Stability |
|
10 minutes |
| Immersion Depth |
|
200 mm |
| Input Specifications |
RTD reference input |
See data sheet for complete specifications |
|
DLC sensor input |
See data sheet for complete specifications |
|
RTD sensor under test |
See data sheet for complete specifications |
|
Thermocouple input |
See data sheet for complete specifications |
| Transmitter Supply |
Output voltage |
24 VDC ±10% |
|
Output current |
Maximum 28 mA |
| Transmitter Input mA (B Model) |
Range |
0 to 24 mA |
|
Accuracy (12 months) |
±(0.005% rdg + 0.010% F.S.) |
| Voltage Input VDC (B Model) |
Range |
0 to 12 VDC |
|
Accuracy (12 months) |
±(0.005% rdg + 0.010% F.S.) |
| Switch Input (B Model) |
Test voltage |
Maximum 5 VDC |
|
Test current |
Maximum 2.5 mA |
| Communications Interface |
Serial data |
USB 2.0 device port |
|
Serial data |
USB 2.0 host double port (for future expansion) |
|
LAN |
Ethernet MAC 10/100 Base-T (for future expansion) |
|
SD |
SD slot (for future expansion) |
| Inserts |
Outer diameter |
29.8 mm |
|
Length |
210 mm |
