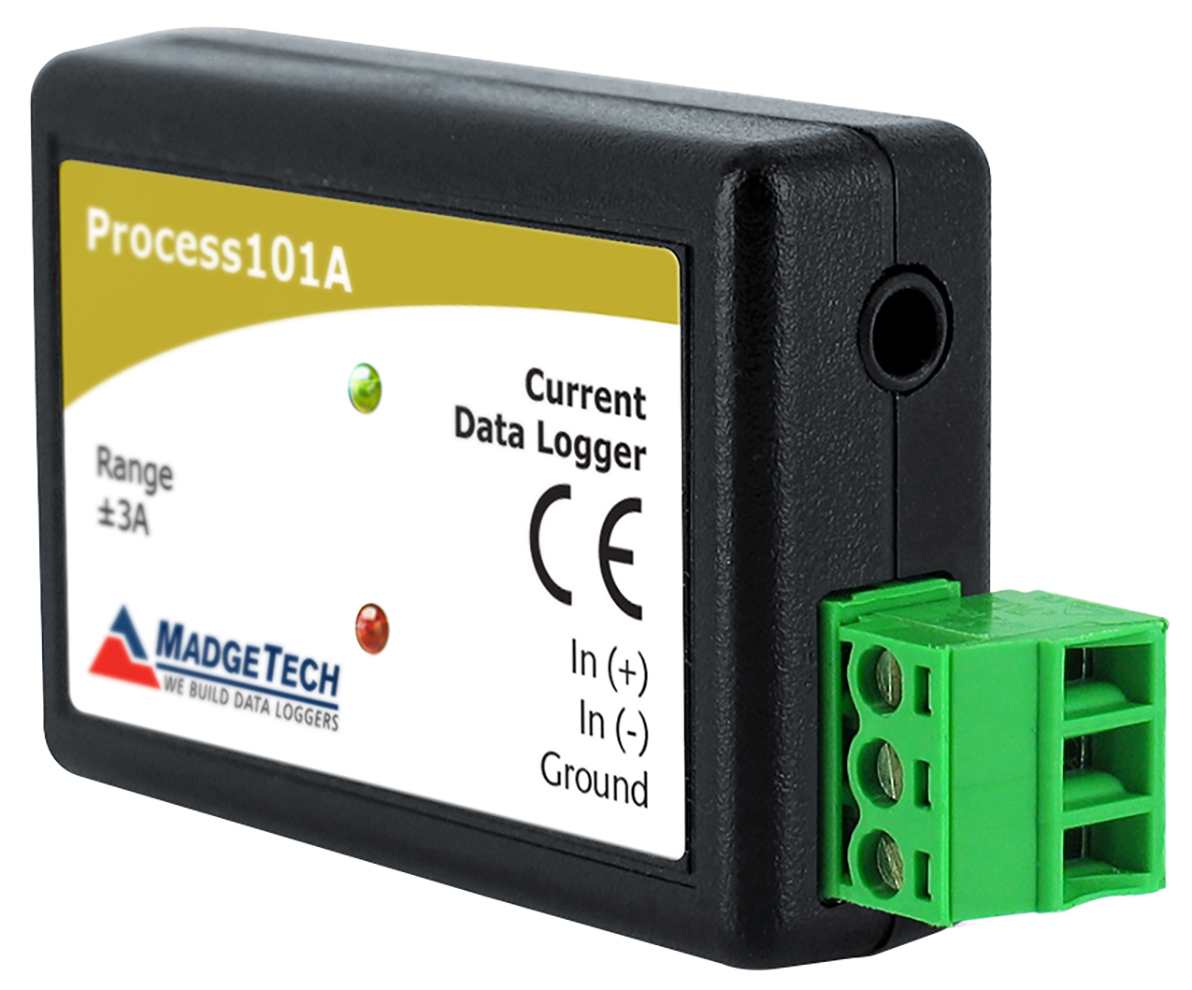

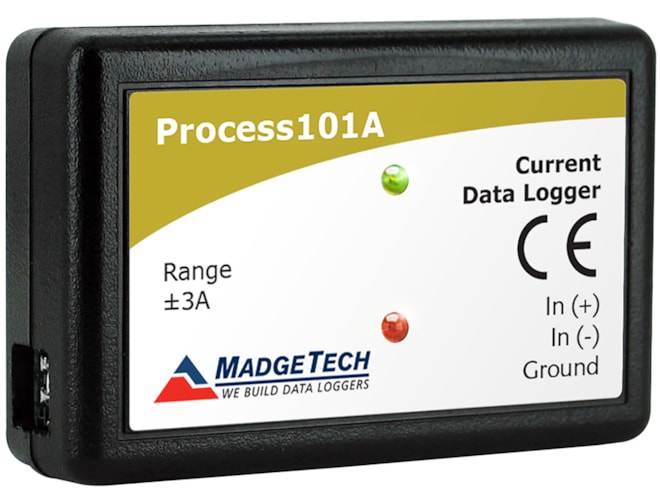

MadgeTech Process101A Data Logger

Low-level, DC current data logger with a 10 year battery life.

MadgeTech Process101A Data Logger
MadgeTech Process101A Data Logger
MadgeTech 4 Data Logger Software Overview

Starting at $219.00

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Simple set-up and installation
Minimal long-term maintenance
Long-term field deployment
Reading Rate:
- 4 Hz to 1 reading every 24 hours
10 year battery life
Multiple start/stop function
Ultra high speed download
1 million reading storage capacity
Memory wrap
Battery life indicator
Field upgradable
Programmable high and low alarms

Requires IFC200 USB Cable & Software Package (Purchased separately)

What's in the Box

NIST traceable calibration certificate

The MadgeTech Process101A a low cost, state-of-the-art current data logger. The Process101A is simple to set-up and requires minimal long-term maintenance. The 10-year battery life makes the logger ideal for long-term field deployment

The MadgeTech Process101A is available in two ranges, 20mA and ±160mA. Both offer a 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 1 million reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more. Common applications for the Process101A include 4 to 20 mA recording, pH recording, low-level DC monitoring, photovoltaic studies and general purpose current recording.

One of the most powerful features of the Process101A is the accompanying software (Madgetech data logger software). MadgeTech's easy-to-use Windows-based program features a variety of powerful tools, all of which work together to allow for the effortless creation and exportation of professionally formatted spreadsheets and customized graphs. Complex analyses can be performed with just one click of the mouse. In addition to data analysis, MadgeTech's software is used for the digital calibration of the Process101A.

Spec Sheets

MadgeTech Process101A Data Logger Datasheet (994 KB)

Manuals

MadgeTech Process101A Data Logger Manual (135 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

MadgeTech IFC200 USB Cable & Software

USB interface cable and software package for MadgeTech data loggers.

In Stock

$119.00

Cases

MadgeTech MT-AluCase Briefcase

Aluminum data logger briefcase, lightweight, durable, 14 or 18 inch wide.

Starting at $325.00

Accessories

Please consider these optional accessories.

MadgeTech Replacement Battery

Replacement batteries for MadgeTech 101A series data loggers.

$10.00

MadgeTech Waterbox101A Enclosure

Weatherproof enclosure provides a water tight seal, allowing non-water resistant data loggers to be used in wet environments.

$50.00

Here's how some of our customers use this product...

Datalogging Process Signals

The Background: Our customer is a facility that needs to data log a 4-20mA process signal in a small control cabinet.

The Problem:* The control cabinet needs to remain completely sealed with no wires protruding from it nor external devices mounted to it.

The Solution: We recommended the MadgeTech Process101A which is battery powered and, at just 1.4 inches x 2.1 inches x 0.6 inches, is small enough to fit inside tight spaces.

Part Number	Price	Available
Process101A-20mA Show Configuration	$219.00	2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
